#include "uspi/macros.h"
Include dependency graph for usbhub.h:

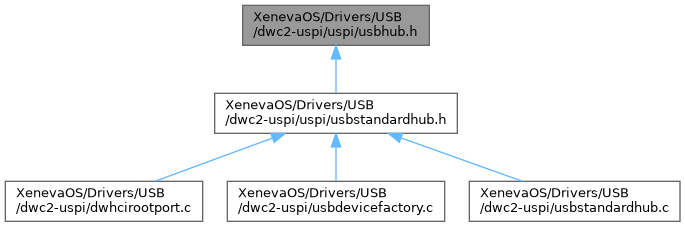

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | TUSBHubDescriptor |
| struct | TUSBHubStatus |
| struct | TUSBPortStatus |
Macros | |
| #define | USB_HUB_MAX_PORTS 8 |
| #define | USB_DEVICE_CLASS_HUB 9 |
| #define | RESET_TT 9 |
| #define | DESCRIPTOR_HUB 0x29 |
| #define | PORT_RESET 4 |
| #define | PORT_POWER 8 |
| #define | HUB_POWER_MODE(reg) ((reg) & 3) |
| #define | HUB_POWER_MODE_GANGED 0 |
| #define | HUB_POWER_MODE_INDIVIDUAL 1 |
| #define | HUB_TT_THINK_TIME(reg) (((reg) >> 5) & 3) |
| #define | HUB_LOCAL_POWER_LOST__MASK (1 << 0) |
| #define | HUB_OVER_CURRENT__MASK (1 << 1) |
| #define | C_HUB_LOCAL_POWER_LOST__MASK (1 << 0) |
| #define | C_HUB_OVER_CURRENT__MASK (1 << 1) |
| #define | PORT_CONNECTION__MASK (1 << 0) |
| #define | PORT_ENABLE__MASK (1 << 1) |
| #define | PORT_OVER_CURRENT__MASK (1 << 3) |
| #define | PORT_RESET__MASK (1 << 4) |
| #define | PORT_POWER__MASK (1 << 8) |
| #define | PORT_LOW_SPEED__MASK (1 << 9) |
| #define | PORT_HIGH_SPEED__MASK (1 << 10) |
Typedefs | |
| typedef struct TUSBHubDescriptor | TUSBHubDescriptor |
| typedef struct TUSBHubStatus | TUSBHubStatus |
| typedef struct TUSBPortStatus | TUSBPortStatus |
Macro Definition Documentation
◆ C_HUB_LOCAL_POWER_LOST__MASK
| #define C_HUB_LOCAL_POWER_LOST__MASK (1 << 0) |
◆ C_HUB_OVER_CURRENT__MASK
| #define C_HUB_OVER_CURRENT__MASK (1 << 1) |
◆ DESCRIPTOR_HUB
| #define DESCRIPTOR_HUB 0x29 |
◆ HUB_LOCAL_POWER_LOST__MASK
| #define HUB_LOCAL_POWER_LOST__MASK (1 << 0) |
◆ HUB_OVER_CURRENT__MASK
| #define HUB_OVER_CURRENT__MASK (1 << 1) |
◆ HUB_POWER_MODE
| #define HUB_POWER_MODE | ( | reg | ) | ((reg) & 3) |
◆ HUB_POWER_MODE_GANGED
| #define HUB_POWER_MODE_GANGED 0 |
◆ HUB_POWER_MODE_INDIVIDUAL
| #define HUB_POWER_MODE_INDIVIDUAL 1 |
◆ HUB_TT_THINK_TIME
| #define HUB_TT_THINK_TIME | ( | reg | ) | (((reg) >> 5) & 3) |
◆ PORT_CONNECTION__MASK
| #define PORT_CONNECTION__MASK (1 << 0) |
◆ PORT_ENABLE__MASK
| #define PORT_ENABLE__MASK (1 << 1) |
◆ PORT_HIGH_SPEED__MASK
| #define PORT_HIGH_SPEED__MASK (1 << 10) |
◆ PORT_LOW_SPEED__MASK
| #define PORT_LOW_SPEED__MASK (1 << 9) |
◆ PORT_OVER_CURRENT__MASK
| #define PORT_OVER_CURRENT__MASK (1 << 3) |
◆ PORT_POWER
| #define PORT_POWER 8 |
◆ PORT_POWER__MASK
| #define PORT_POWER__MASK (1 << 8) |
◆ PORT_RESET
| #define PORT_RESET 4 |
◆ PORT_RESET__MASK
| #define PORT_RESET__MASK (1 << 4) |
◆ RESET_TT
| #define RESET_TT 9 |
◆ USB_DEVICE_CLASS_HUB
| #define USB_DEVICE_CLASS_HUB 9 |
◆ USB_HUB_MAX_PORTS
| #define USB_HUB_MAX_PORTS 8 |
Typedef Documentation
◆ TUSBHubDescriptor
| typedef struct TUSBHubDescriptor TUSBHubDescriptor |
◆ TUSBHubStatus
| typedef struct TUSBHubStatus TUSBHubStatus |
◆ TUSBPortStatus
| typedef struct TUSBPortStatus TUSBPortStatus |
