#include <IndustryStandard/Acpi.h>

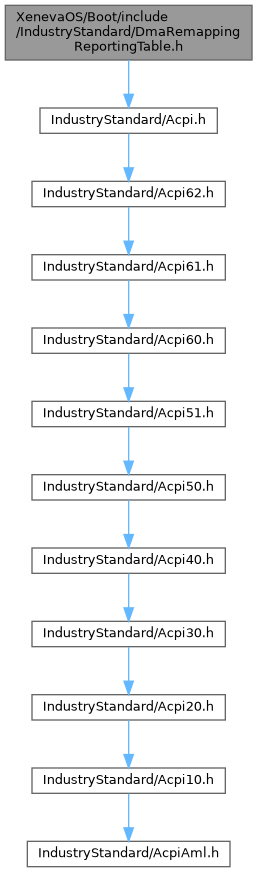

Include dependency graph for DmaRemappingReportingTable.h:

Classes
struct	EFI_ACPI_DMAR_STRUCTURE_HEADER

struct	EFI_ACPI_DMAR_PCI_PATH

struct	EFI_ACPI_DMAR_DEVICE_SCOPE_STRUCTURE_HEADER

struct	EFI_ACPI_DMAR_DRHD_HEADER

struct	EFI_ACPI_DMAR_RMRR_HEADER

struct	EFI_ACPI_DMAR_ATSR_HEADER

struct	EFI_ACPI_DMAR_RHSA_HEADER

struct	EFI_ACPI_DMAR_ANDD_HEADER

struct	EFI_ACPI_DMAR_HEADER

Macros
#define	EFI_ACPI_DMAR_DRHD_FLAGS_INCLUDE_PCI_ALL BIT0

#define	EFI_ACPI_DMAR_ATSR_FLAGS_ALL_PORTS BIT0


#define	EFI_ACPI_DMAR_REVISION 0x01

#define	EFI_ACPI_DMAR_FLAGS_INTR_REMAP BIT0

#define	EFI_ACPI_DMAR_FLAGS_X2APIC_OPT_OUT BIT1

#define	EFI_ACPI_DMAR_FLAGS_DMA_CTRL_PLATFORM_OPT_IN_FLAG BIT2


#define	EFI_ACPI_DMAR_TYPE_DRHD 0x00

#define	EFI_ACPI_DMAR_TYPE_RMRR 0x01

#define	EFI_ACPI_DMAR_TYPE_ATSR 0x02

#define	EFI_ACPI_DMAR_TYPE_RHSA 0x03

#define	EFI_ACPI_DMAR_TYPE_ANDD 0x04


#define	EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_ENDPOINT 0x01

#define	EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_BRIDGE 0x02

#define	EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_IOAPIC 0x03

#define	EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_MSI_CAPABLE_HPET 0x04

#define	EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_ACPI_NAMESPACE_DEVICE 0x05

Detailed Description

DMA Remapping Reporting (DMAR) ACPI table definition from Intel(R) Virtualization Technology for Directed I/O (VT-D) Architecture Specification.

Copyright (c) 2016 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:

Intel(R) Virtualization Technology for Directed I/O (VT-D) Architecture Specification v2.5, Dated November 2017. http://www.intel.com/content/dam/www/public/us/en/documents/product-specifications/vt-directed-io-spec.pdf

Glossary:

HPET - High Precision Event Timer
NUMA - Non-uniform Memory Access

Macro Definition Documentation

◆ EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_ACPI_NAMESPACE_DEVICE

#define EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_ACPI_NAMESPACE_DEVICE 0x05

◆ EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_IOAPIC

#define EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_IOAPIC 0x03

◆ EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_MSI_CAPABLE_HPET

#define EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_MSI_CAPABLE_HPET 0x04

◆ EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_BRIDGE

#define EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_BRIDGE 0x02

◆ EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_ENDPOINT

#define EFI_ACPI_DEVICE_SCOPE_ENTRY_TYPE_PCI_ENDPOINT 0x01

DMA-Remapping Device Scope Entry Structure definitions from section 8.3.1

◆ EFI_ACPI_DMAR_ATSR_FLAGS_ALL_PORTS

#define EFI_ACPI_DMAR_ATSR_FLAGS_ALL_PORTS BIT0

Root Port ATS Capability Reporting Structure definitions from section 8.5

◆ EFI_ACPI_DMAR_DRHD_FLAGS_INCLUDE_PCI_ALL

#define EFI_ACPI_DMAR_DRHD_FLAGS_INCLUDE_PCI_ALL BIT0

DMA-Remapping Hardware Unit definitions from section 8.3

◆ EFI_ACPI_DMAR_FLAGS_DMA_CTRL_PLATFORM_OPT_IN_FLAG

#define EFI_ACPI_DMAR_FLAGS_DMA_CTRL_PLATFORM_OPT_IN_FLAG BIT2

◆ EFI_ACPI_DMAR_FLAGS_INTR_REMAP

#define EFI_ACPI_DMAR_FLAGS_INTR_REMAP BIT0

◆ EFI_ACPI_DMAR_FLAGS_X2APIC_OPT_OUT

#define EFI_ACPI_DMAR_FLAGS_X2APIC_OPT_OUT BIT1

◆ EFI_ACPI_DMAR_REVISION

#define EFI_ACPI_DMAR_REVISION 0x01

DMA-Remapping Reporting Structure definitions from section 8.1

◆ EFI_ACPI_DMAR_TYPE_ANDD

#define EFI_ACPI_DMAR_TYPE_ANDD 0x04

◆ EFI_ACPI_DMAR_TYPE_ATSR

#define EFI_ACPI_DMAR_TYPE_ATSR 0x02

◆ EFI_ACPI_DMAR_TYPE_DRHD

#define EFI_ACPI_DMAR_TYPE_DRHD 0x00

Remapping Structure Types definitions from section 8.2

◆ EFI_ACPI_DMAR_TYPE_RHSA

#define EFI_ACPI_DMAR_TYPE_RHSA 0x03

◆ EFI_ACPI_DMAR_TYPE_RMRR

#define EFI_ACPI_DMAR_TYPE_RMRR 0x01
