usb.h File Reference

#include <stdint.h>
#include "xhci.h"

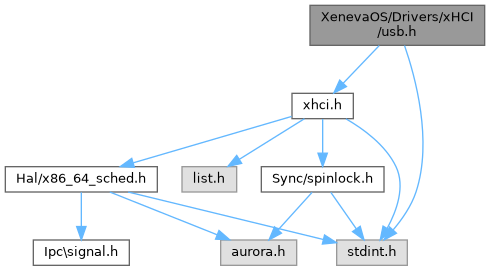

Include dependency graph for usb.h:

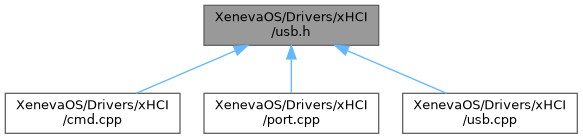

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_dev_desc_
struct	_interface_desc_
struct	_qualifier_desc_
struct	_config_desc_
struct	_string_desc_
struct	_endpoint_desc_
struct	_usb_desc_
struct	_usb_dev_

Macros
#define	USB_BM_REQUEST_OUTPUT   0
#define	USB_BM_REQUEST_INPUT   0x80
#define	USB_BM_REQUEST_STANDARD   0
#define	USB_BM_REQUEST_CLASS   0x20
#define	USB_BM_REQUEST_VENDOR   0x40
#define	USB_BM_REQUEST_DEVICE   0
#define	USB_BM_REQUEST_INTERFACE   1
#define	USB_BM_REQUEST_ENDPOINT   2
#define	USB_BM_REQUEST_OTHER   3
#define	USB_BM_REQUEST_VENDORSPEC   0x1F
#define	USB_BREQUEST_GET_STATUS   0
#define	USB_BREQUEST_CLEAR_FEATURE   1
#define	USB_BREQUEST_SET_FEATURE   3
#define	USB_BREQUEST_SET_ADDRESS   5
#define	USB_BREQUEST_GET_DESCRIPTOR   6
#define	USB_BREQUEST_SET_DESCRIPTOR   7
#define	USB_BREQUEST_GET_CONFIGURATION   8
#define	USB_BREQUEST_SET_CONFIGURATION   9
#define	USB_BREQUEST_GET_INTERFACE   10
#define	USB_BREQUEST_SET_INTERFACE   11
#define	USB_DESCRIPTOR_DEVICE   1
#define	USB_DESCRIPTOR_CONFIGURATION   2
#define	USB_DESCRIPTOR_STRING   3
#define	USB_DESCRIPTOR_INTERFACE   4
#define	USB_DESCRIPTOR_ENDPOINT   5
#define	USB_DESCRIPTOR_SUPERSPEED_ENDP_CMP   48
#define	USB_DESCRIPTOR_WVALUE(type, index)   ((type << 8) | index)
#define	USB_AUDIO_DEV_CLASS   0x01
#define	USB_COMMUNICATION_CDC_CTRL_CLASS   0x02
#define	USB_HID_DEV_CLASS   0x03
#define	USB_PHYSICAL_DEV_CLASS   0x05
#define	USB_IMAGE_DEV_CLASS   0x06
#define	USB_PRINTER_DEV_CLASS   0x07
#define	USB_MASS_STORAGE_DEV_CLASS   0x08
#define	USB_HUB_DEV_CLASS   0x09
#define	USB_CDC_DATA_DEV_CLASS   0x0A
#define	USB_SMART_CARD_DEV_CLASS   0x0B
#define	USB_CONTENT_SECURITY_DEV_CLASS   0x0D
#define	USB_VIDEO_DEV_CLASS   0x0E
#define	USB_PERSONAL_HEALTHCARE_DEV_CLASS   0x0F
#define	USB_AUDIO_VIDEO_DEV_CLASS   0x10
#define	USB_BILLBOARD_DEV_CLASS   0x11
#define	USB_TYPE_C_BRIDGE_CLASS   0x12
#define	USB_I3C_DEV_CLASS   0x3C
#define	USB_DIAGNOSTIC_DEV_CLASS   0xDC
#define	USB_WIRELESS_CONTROLLER_DEV_CLASS   0xE0
#define	USB_MISCELLANEOUS_DEV_CLASS   0xEF
#define	ENDPOINT_TRANSFER_TYPE_CONTROL   0
#define	ENDPOINT_TRANSFER_TYPE_ISOCH   1
#define	ENDPOINT_TRANSFER_TYPE_BULK   2
#define	ENDPOINT_TRANSFER_TYPE_INT   3

Typedefs
typedef struct _dev_desc_	usb_dev_desc_t
typedef struct _interface_desc_	usb_if_desc_t
typedef struct _qualifier_desc_	usb_qualifier_desc_t
typedef struct _config_desc_	usb_config_desc_t
typedef struct _string_desc_	usb_string_desc_t
typedef struct _endpoint_desc_	usb_endpoint_desc_t
typedef struct _usb_desc_	usb_descriptor_t
typedef int(*	usb_drv_entry) (_usb_dev_ *dev)
typedef int(*	usb_drv_unload) (_usb_dev_ *dev)
typedef struct _usb_dev_	AuUSBDevice

Functions
AuUSBDevice *	USBCreateDevice ()
void	USBGetDeviceDesc (AuUSBDevice *usbdev, uint64_t buffer, uint16_t len)
void	USBGetStringDesc (AuUSBDevice *usbdev, uint64_t buffer, uint16_t id)
void	USBGetConfigDesc (AuUSBDevice *usbdev, uint64_t buffer, uint16_t len, uint8_t id)
void	USBSetConfigDesc (AuUSBDevice *usbdev, uint8_t configval)
void	USBScheduleInterrupt (AuUSBDevice *usbdev, void *ep, uint64_t physdata)
void	USBDeviceSetFunctions (AuUSBDevice *dev)

Macro Definition Documentation

ENDPOINT_TRANSFER_TYPE_BULK

#define ENDPOINT_TRANSFER_TYPE_BULK   2

ENDPOINT_TRANSFER_TYPE_CONTROL

#define ENDPOINT_TRANSFER_TYPE_CONTROL   0

ENDPOINT_TRANSFER_TYPE_INT

#define ENDPOINT_TRANSFER_TYPE_INT   3

ENDPOINT_TRANSFER_TYPE_ISOCH

#define ENDPOINT_TRANSFER_TYPE_ISOCH   1

USB_AUDIO_DEV_CLASS

#define USB_AUDIO_DEV_CLASS   0x01

USB_AUDIO_VIDEO_DEV_CLASS

#define USB_AUDIO_VIDEO_DEV_CLASS   0x10

USB_BILLBOARD_DEV_CLASS

#define USB_BILLBOARD_DEV_CLASS   0x11

USB_BM_REQUEST_CLASS

#define USB_BM_REQUEST_CLASS   0x20

USB_BM_REQUEST_DEVICE

#define USB_BM_REQUEST_DEVICE   0

USB_BM_REQUEST_ENDPOINT

#define USB_BM_REQUEST_ENDPOINT   2

USB_BM_REQUEST_INPUT

#define USB_BM_REQUEST_INPUT   0x80

USB_BM_REQUEST_INTERFACE

#define USB_BM_REQUEST_INTERFACE   1

USB_BM_REQUEST_OTHER

#define USB_BM_REQUEST_OTHER   3

USB_BM_REQUEST_OUTPUT

#define USB_BM_REQUEST_OUTPUT   0

BSD 2-Clause License

Copyright (c) 2022-2025, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

USB_BM_REQUEST_STANDARD

#define USB_BM_REQUEST_STANDARD   0

USB_BM_REQUEST_VENDOR

#define USB_BM_REQUEST_VENDOR   0x40

USB_BM_REQUEST_VENDORSPEC

#define USB_BM_REQUEST_VENDORSPEC   0x1F

USB_BREQUEST_CLEAR_FEATURE

#define USB_BREQUEST_CLEAR_FEATURE   1

USB_BREQUEST_GET_CONFIGURATION

#define USB_BREQUEST_GET_CONFIGURATION   8

USB_BREQUEST_GET_DESCRIPTOR

#define USB_BREQUEST_GET_DESCRIPTOR   6

USB_BREQUEST_GET_INTERFACE

#define USB_BREQUEST_GET_INTERFACE   10

USB_BREQUEST_GET_STATUS

#define USB_BREQUEST_GET_STATUS   0

USB_BREQUEST_SET_ADDRESS

#define USB_BREQUEST_SET_ADDRESS   5

USB_BREQUEST_SET_CONFIGURATION

#define USB_BREQUEST_SET_CONFIGURATION   9

USB_BREQUEST_SET_DESCRIPTOR

#define USB_BREQUEST_SET_DESCRIPTOR   7

USB_BREQUEST_SET_FEATURE

#define USB_BREQUEST_SET_FEATURE   3

USB_BREQUEST_SET_INTERFACE

#define USB_BREQUEST_SET_INTERFACE   11

USB_CDC_DATA_DEV_CLASS

#define USB_CDC_DATA_DEV_CLASS   0x0A

USB_COMMUNICATION_CDC_CTRL_CLASS

#define USB_COMMUNICATION_CDC_CTRL_CLASS   0x02

USB_CONTENT_SECURITY_DEV_CLASS

#define USB_CONTENT_SECURITY_DEV_CLASS   0x0D

USB_DESCRIPTOR_CONFIGURATION

#define USB_DESCRIPTOR_CONFIGURATION   2

USB_DESCRIPTOR_DEVICE

#define USB_DESCRIPTOR_DEVICE   1

USB_DESCRIPTOR_ENDPOINT

#define USB_DESCRIPTOR_ENDPOINT   5

USB_DESCRIPTOR_INTERFACE

#define USB_DESCRIPTOR_INTERFACE   4

USB_DESCRIPTOR_STRING

#define USB_DESCRIPTOR_STRING   3

USB_DESCRIPTOR_SUPERSPEED_ENDP_CMP

#define USB_DESCRIPTOR_SUPERSPEED_ENDP_CMP   48

USB_DESCRIPTOR_WVALUE

#define USB_DESCRIPTOR_WVALUE	(		type,
			index
	)		((type << 8) | index)

USB_DIAGNOSTIC_DEV_CLASS

#define USB_DIAGNOSTIC_DEV_CLASS   0xDC

USB_HID_DEV_CLASS

#define USB_HID_DEV_CLASS   0x03

USB_HUB_DEV_CLASS

#define USB_HUB_DEV_CLASS   0x09

USB_I3C_DEV_CLASS

#define USB_I3C_DEV_CLASS   0x3C

USB_IMAGE_DEV_CLASS

#define USB_IMAGE_DEV_CLASS   0x06

USB_MASS_STORAGE_DEV_CLASS

#define USB_MASS_STORAGE_DEV_CLASS   0x08

USB_MISCELLANEOUS_DEV_CLASS

#define USB_MISCELLANEOUS_DEV_CLASS   0xEF

USB_PERSONAL_HEALTHCARE_DEV_CLASS

#define USB_PERSONAL_HEALTHCARE_DEV_CLASS   0x0F

USB_PHYSICAL_DEV_CLASS

#define USB_PHYSICAL_DEV_CLASS   0x05

USB_PRINTER_DEV_CLASS

#define USB_PRINTER_DEV_CLASS   0x07

USB_SMART_CARD_DEV_CLASS

#define USB_SMART_CARD_DEV_CLASS   0x0B

USB_TYPE_C_BRIDGE_CLASS

#define USB_TYPE_C_BRIDGE_CLASS   0x12

USB_VIDEO_DEV_CLASS

#define USB_VIDEO_DEV_CLASS   0x0E

USB_WIRELESS_CONTROLLER_DEV_CLASS

#define USB_WIRELESS_CONTROLLER_DEV_CLASS   0xE0

Typedef Documentation

AuUSBDevice

typedef struct _usb_dev_ AuUSBDevice

usb_config_desc_t

typedef struct _config_desc_ usb_config_desc_t

usb_descriptor_t

typedef struct _usb_desc_ usb_descriptor_t

usb_dev_desc_t

typedef struct _dev_desc_ usb_dev_desc_t

usb_drv_entry

typedef int(* usb_drv_entry) (_usb_dev_ *dev)

usb_drv_unload

typedef int(* usb_drv_unload) (_usb_dev_ *dev)

usb_endpoint_desc_t

typedef struct _endpoint_desc_ usb_endpoint_desc_t

usb_if_desc_t

typedef struct _interface_desc_ usb_if_desc_t

usb_qualifier_desc_t

typedef struct _qualifier_desc_ usb_qualifier_desc_t

usb_string_desc_t

typedef struct _string_desc_ usb_string_desc_t

Function Documentation

USBCreateDevice()

AuUSBDevice * USBCreateDevice ( )

extern

BSD 2-Clause License

Copyright (c) 2022-2025, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

USBDeviceSetFunctions()

void USBDeviceSetFunctions ( AuUSBDevice *  dev )

extern

USBGetConfigDesc()

void USBGetConfigDesc ( AuUSBDevice *  usbdev, uint64_t  buffer, uint16_t  len, uint8_t  id  )

extern

USBGetDeviceDesc()

void USBGetDeviceDesc ( AuUSBDevice *  usbdev, uint64_t  buffer, uint16_t  len  )

extern

USBGetStringDesc()

void USBGetStringDesc ( AuUSBDevice *  usbdev, uint64_t  buffer, uint16_t  id  )

extern

USBScheduleInterrupt()

void USBScheduleInterrupt ( AuUSBDevice *  usbdev, void *  ep, uint64_t  physdata  )

extern

USBSetConfigDesc()

void USBSetConfigDesc ( AuUSBDevice *  usbdev, uint8_t  configval  )

extern
