#include <usb3.h>

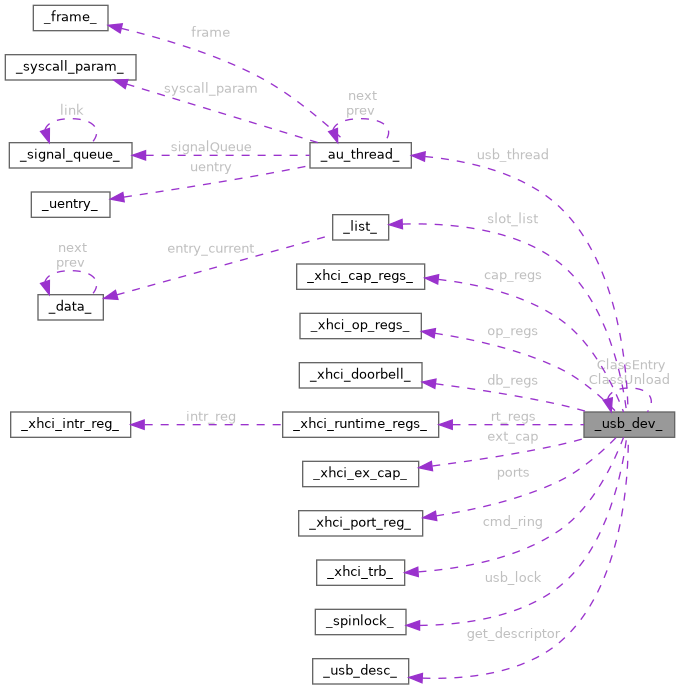

Collaboration diagram for _usb_dev_:

[legend]

Public Attributes
bool	initialised

bool	is_csz_64

AuThread *	usb_thread

list_t *	slot_list

xhci_cap_regs_t *	cap_regs

xhci_op_regs_t *	op_regs

xhci_doorbell_regs_t *	db_regs

xhci_runtime_regs_t *	rt_regs

xhci_ext_cap_t *	ext_cap

xhci_port_regs_t *	ports

uint32_t	num_slots

uint32_t	num_ports

uint16_t	max_intrs

uint8_t	irq

uint64_t *	dev_ctx_base_array

xhci_trb_t *	cmd_ring

uint64_t	cmd_ring_phys

unsigned	cmd_ring_index

unsigned	cmd_ring_max

unsigned	cmd_ring_cycle

uint64_t *	event_ring_segment

uint64_t *	event_ring_seg_phys

unsigned	evnt_ring_index

unsigned	evnt_ring_cycle

unsigned	evnt_ring_max

int	poll_event_for_trb

bool	event_available

int	poll_return_trb_type

int	trb_event_index

Spinlock *	usb_lock

void *	data

uint32_t	classCode

uint32_t	subClassCode

uint16_t	vendorID

uint16_t	deviceID

int	configValue

uint16_t	usbVersion

uint8_t	address

uint8_t	protocol

void *	descriptor

int	numInterfaces

int	numEndpoint

bool	driverInitialized

void(*	schedule_interrupt )(_usb_dev_ dev, void ep, uint64_t buffer, void(callback)(void dev, void slot, void Endp))

void(*	control_transfer )(_usb_dev_ usbdev, const USB_REQUEST_PACKET request, uint64_t buffer_addr, const size_t len)

void(*	bulk_transfer )(_usb_dev_ usbdev, uint64_t buffer, uint16_t data_len, void ep)

void(*	get_device_desc )(_usb_dev_ *dev, uint64_t buffer, uint16_t len)

void(*	get_string_desc )(_usb_dev_ *dev, uint64_t buffer, uint16_t id)

void(*	get_config_desc )(_usb_dev_ *dev, uint64_t buffer, uint16_t len, uint8_t id)

usb_descriptor_t (	get_descriptor )(_usb_dev_ *dev, uint8_t type)

void (	get_endpoint )(_usb_dev_ *dev, uint8_t ep_type)

void (	get_bulk_ep )(_usb_dev_ *dev, uint8_t dir)

int(*	get_max_pack_sz )(_usb_dev_ dev, void ep)

uint8_t(*	get_endpoint_address )(_usb_dev_ dev, void ep)

uint8_t(*	get_endpoint_attrib )(_usb_dev_ dev, void ep)

void(*	set_config_val )(_usb_dev_ *dev, uint8_t config_val)

int(*	poll_wait )(_usb_dev_ *dev, int wait_type)

usb_drv_entry	ClassEntry

usb_drv_unload	ClassUnload

Detailed Description

BSD 2-Clause License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Member Data Documentation

◆ address

uint8_t _usb_dev_::address

◆ bulk_transfer

void(* _usb_dev_::bulk_transfer) (_usb_dev_ *usbdev, uint64_t buffer, uint16_t data_len, void *ep)

◆ cap_regs

xhci_cap_regs_t* _usb_dev_::cap_regs

◆ classCode

uint32_t _usb_dev_::classCode

◆ ClassEntry

usb_drv_entry _usb_dev_::ClassEntry

◆ ClassUnload

usb_drv_unload _usb_dev_::ClassUnload

◆ cmd_ring

xhci_trb_t* _usb_dev_::cmd_ring

◆ cmd_ring_cycle

unsigned _usb_dev_::cmd_ring_cycle

◆ cmd_ring_index

unsigned _usb_dev_::cmd_ring_index

◆ cmd_ring_max

unsigned _usb_dev_::cmd_ring_max

◆ cmd_ring_phys

uint64_t _usb_dev_::cmd_ring_phys

◆ configValue

int _usb_dev_::configValue

◆ control_transfer

void(* _usb_dev_::control_transfer) (_usb_dev_ *usbdev, const USB_REQUEST_PACKET *request, uint64_t buffer_addr, const size_t len)

◆ data

void* _usb_dev_::data

◆ db_regs

xhci_doorbell_regs_t* _usb_dev_::db_regs

◆ descriptor

void* _usb_dev_::descriptor

◆ dev_ctx_base_array

uint64_t* _usb_dev_::dev_ctx_base_array

◆ deviceID

uint16_t _usb_dev_::deviceID

◆ driverInitialized

bool _usb_dev_::driverInitialized

◆ event_available

bool _usb_dev_::event_available

◆ event_ring_seg_phys

uint64_t* _usb_dev_::event_ring_seg_phys

◆ event_ring_segment

uint64_t* _usb_dev_::event_ring_segment

◆ evnt_ring_cycle

unsigned _usb_dev_::evnt_ring_cycle

◆ evnt_ring_index

unsigned _usb_dev_::evnt_ring_index

◆ evnt_ring_max

unsigned _usb_dev_::evnt_ring_max

◆ ext_cap

xhci_ext_cap_t* _usb_dev_::ext_cap

◆ get_bulk_ep

void *(* _usb_dev_::get_bulk_ep) (_usb_dev_ *dev, uint8_t dir)

◆ get_config_desc

void(* _usb_dev_::get_config_desc) (_usb_dev_ *dev, uint64_t buffer, uint16_t len, uint8_t id)

◆ get_descriptor

usb_descriptor_t *(* _usb_dev_::get_descriptor) (_usb_dev_ *dev, uint8_t type)

◆ get_device_desc

void(* _usb_dev_::get_device_desc) (_usb_dev_ *dev, uint64_t buffer, uint16_t len)

◆ get_endpoint

void *(* _usb_dev_::get_endpoint) (_usb_dev_ *dev, uint8_t ep_type)

◆ get_endpoint_address

uint8_t(* _usb_dev_::get_endpoint_address) (_usb_dev_ *dev, void *ep)

◆ get_endpoint_attrib

uint8_t(* _usb_dev_::get_endpoint_attrib) (_usb_dev_ *dev, void *ep)

◆ get_max_pack_sz

int(* _usb_dev_::get_max_pack_sz) (_usb_dev_ *dev, void *ep)

◆ get_string_desc

void(* _usb_dev_::get_string_desc) (_usb_dev_ *dev, uint64_t buffer, uint16_t id)

◆ initialised

bool _usb_dev_::initialised

◆ irq

uint8_t _usb_dev_::irq

◆ is_csz_64

bool _usb_dev_::is_csz_64

◆ max_intrs

uint16_t _usb_dev_::max_intrs

◆ num_ports

uint32_t _usb_dev_::num_ports

◆ num_slots

uint32_t _usb_dev_::num_slots

◆ numEndpoint

int _usb_dev_::numEndpoint

◆ numInterfaces

int _usb_dev_::numInterfaces

◆ op_regs

xhci_op_regs_t* _usb_dev_::op_regs

◆ poll_event_for_trb

int _usb_dev_::poll_event_for_trb

◆ poll_return_trb_type

int _usb_dev_::poll_return_trb_type

◆ poll_wait

int(* _usb_dev_::poll_wait) (_usb_dev_ *dev, int wait_type)

◆ ports

xhci_port_regs_t* _usb_dev_::ports

◆ protocol

uint8_t _usb_dev_::protocol

◆ rt_regs

xhci_runtime_regs_t* _usb_dev_::rt_regs

◆ schedule_interrupt

void(* _usb_dev_::schedule_interrupt) (_usb_dev_ *dev, void *ep, uint64_t buffer, void(*callback)(void *dev, void *slot, void *Endp))

◆ set_config_val

void(* _usb_dev_::set_config_val) (_usb_dev_ *dev, uint8_t config_val)

◆ slot_list

list_t* _usb_dev_::slot_list

◆ subClassCode

uint32_t _usb_dev_::subClassCode

◆ trb_event_index

int _usb_dev_::trb_event_index

◆ usb_lock

Spinlock* _usb_dev_::usb_lock

◆ usb_thread

AuThread* _usb_dev_::usb_thread

◆ usbVersion

uint16_t _usb_dev_::usbVersion

◆ vendorID

uint16_t _usb_dev_::vendorID

The documentation for this struct was generated from the following files:

XenevaOS/Drivers/Usb3/usb3.h
XenevaOS/Drivers/xHCI/usb.h
