#include <Library/BaseLib.h>

Include dependency graph for PciCfg2.h:

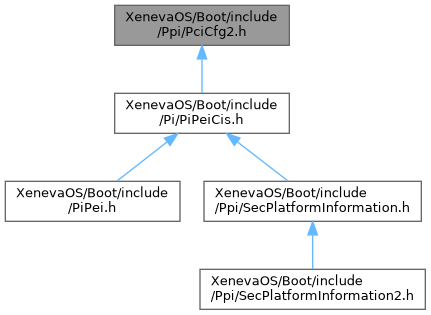

This graph shows which files directly or indirectly include this file:

Classes
struct	EFI_PEI_PCI_CFG_PPI_PCI_ADDRESS

struct	_EFI_PEI_PCI_CFG2_PPI

Macros
#define	EFI_PEI_PCI_CFG2_PPI_GUID { 0x57a449a, 0x1fdc, 0x4c06, { 0xbf, 0xc9, 0xf5, 0x3f, 0x6a, 0x99, 0xbb, 0x92 } }

#define	EFI_PEI_PCI_CFG_ADDRESS(bus, dev, func, reg)

Typedefs
typedef struct _EFI_PEI_PCI_CFG2_PPI	EFI_PEI_PCI_CFG2_PPI

typedef EFI_STATUS(EFIAPI *	EFI_PEI_PCI_CFG2_PPI_IO) (IN CONST EFI_PEI_SERVICES *PeiServices, IN CONST EFI_PEI_PCI_CFG2_PPI This, IN EFI_PEI_PCI_CFG_PPI_WIDTH Width, IN UINT64 Address, IN OUT VOID *Buffer)

typedef EFI_STATUS(EFIAPI *	EFI_PEI_PCI_CFG2_PPI_RW) (IN CONST EFI_PEI_SERVICES *PeiServices, IN CONST EFI_PEI_PCI_CFG2_PPI This, IN EFI_PEI_PCI_CFG_PPI_WIDTH Width, IN UINT64 Address, IN VOID SetBits, IN VOID ClearBits)

Enumerations
enum	EFI_PEI_PCI_CFG_PPI_WIDTH { EfiPeiPciCfgWidthUint8 = 0 , EfiPeiPciCfgWidthUint16 = 1 , EfiPeiPciCfgWidthUint32 = 2 , EfiPeiPciCfgWidthUint64 = 3 , EfiPeiPciCfgWidthMaximum }

Variables
EFI_GUID	gEfiPciCfg2PpiGuid

Detailed Description

This file declares PciCfg2 PPI.

This ppi Provides platform or chipset-specific access to the PCI configuration space for a specific PCI segment.

Copyright (c) 2006 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:: This PPI is introduced in PI Version 1.0.

Macro Definition Documentation

◆ EFI_PEI_PCI_CFG2_PPI_GUID

#define EFI_PEI_PCI_CFG2_PPI_GUID { 0x57a449a, 0x1fdc, 0x4c06, { 0xbf, 0xc9, 0xf5, 0x3f, 0x6a, 0x99, 0xbb, 0x92 } }

◆ EFI_PEI_PCI_CFG_ADDRESS

#define EFI_PEI_PCI_CFG_ADDRESS	(	bus,
		dev,
		func,
		reg
	)

Value:

  (UINT64) ( \
  (((UINTN) bus) << 24) | \
  (((UINTN) dev) << 16) | \
  (((UINTN) func) << 8) | \
  (((UINTN) (reg)) < 256 ? ((UINTN) (reg)) : (UINT64) (LShiftU64 ((UINT64) (reg), 32))))

Typedef Documentation

◆ EFI_PEI_PCI_CFG2_PPI

typedef struct _EFI_PEI_PCI_CFG2_PPI EFI_PEI_PCI_CFG2_PPI

◆ EFI_PEI_PCI_CFG2_PPI_IO

typedef EFI_STATUS(EFIAPI * EFI_PEI_PCI_CFG2_PPI_IO) (IN CONST EFI_PEI_SERVICES **PeiServices, IN CONST EFI_PEI_PCI_CFG2_PPI *This, IN EFI_PEI_PCI_CFG_PPI_WIDTH Width, IN UINT64 Address, IN OUT VOID *Buffer)

Reads from or write to a given location in the PCI configuration space.

Parameters

PeiServices	An indirect pointer to the PEI Services Table published by the PEI Foundation.
This	Pointer to local data for the interface.
Width	The width of the access. Enumerated in bytes. See EFI_PEI_PCI_CFG_PPI_WIDTH above.
Address	The physical address of the access. The format of the address is described by EFI_PEI_PCI_CFG_PPI_PCI_ADDRESS.
Buffer	A pointer to the buffer of data..

Return values

EFI_SUCCESS	The function completed successfully.
EFI_DEVICE_ERROR	There was a problem with the transaction.
EFI_DEVICE_NOT_READY	The device is not capable of supporting the operation at this time.

◆ EFI_PEI_PCI_CFG2_PPI_RW

typedef EFI_STATUS(EFIAPI * EFI_PEI_PCI_CFG2_PPI_RW) (IN CONST EFI_PEI_SERVICES **PeiServices, IN CONST EFI_PEI_PCI_CFG2_PPI *This, IN EFI_PEI_PCI_CFG_PPI_WIDTH Width, IN UINT64 Address, IN VOID *SetBits, IN VOID *ClearBits)

Performs a read-modify-write operation on the contents from a given location in the PCI configuration space.

Parameters

PeiServices	An indirect pointer to the PEI Services Table published by the PEI Foundation.
This	Pointer to local data for the interface.
Width	The width of the access. Enumerated in bytes. Type EFI_PEI_PCI_CFG_PPI_WIDTH is defined in Read().
Address	The physical address of the access.
SetBits	Points to value to bitwise-OR with the read configuration value. The size of the value is determined by Width.
ClearBits	Points to the value to negate and bitwise-AND with the read configuration value. The size of the value is determined by Width.

Return values

EFI_SUCCESS	The function completed successfully.
EFI_DEVICE_ERROR	There was a problem with the transaction.
EFI_DEVICE_NOT_READY	The device is not capable of supporting the operation at this time.

Enumeration Type Documentation

◆ EFI_PEI_PCI_CFG_PPI_WIDTH

enum EFI_PEI_PCI_CFG_PPI_WIDTH

EFI_PEI_PCI_CFG_PPI_WIDTH

Enumerator
EfiPeiPciCfgWidthUint8	8-bit access
EfiPeiPciCfgWidthUint16	16-bit access
EfiPeiPciCfgWidthUint32	32-bit access
EfiPeiPciCfgWidthUint64	64-bit access
EfiPeiPciCfgWidthMaximum

Variable Documentation

◆ gEfiPciCfg2PpiGuid

EFI_GUID gEfiPciCfg2PpiGuid

extern
