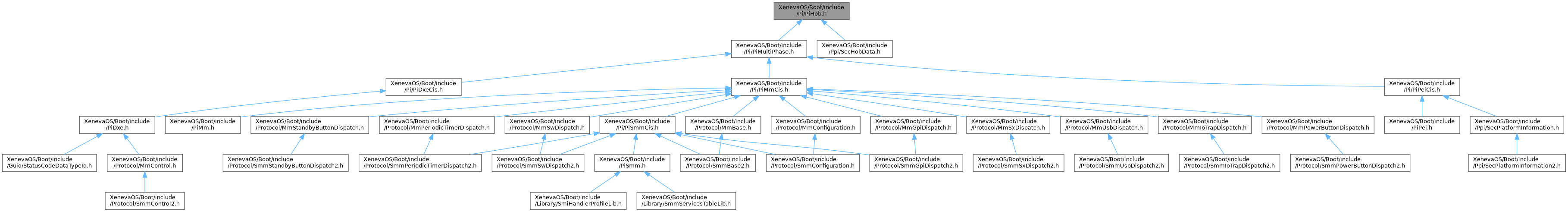

This graph shows which files directly or indirectly include this file:

Classes
struct	EFI_HOB_GENERIC_HEADER

struct	EFI_HOB_HANDOFF_INFO_TABLE

struct	EFI_HOB_MEMORY_ALLOCATION_HEADER

struct	EFI_HOB_MEMORY_ALLOCATION

struct	EFI_HOB_MEMORY_ALLOCATION_STACK

struct	EFI_HOB_MEMORY_ALLOCATION_BSP_STORE

struct	EFI_HOB_MEMORY_ALLOCATION_MODULE

struct	EFI_HOB_RESOURCE_DESCRIPTOR

struct	EFI_HOB_GUID_TYPE

struct	EFI_HOB_FIRMWARE_VOLUME

struct	EFI_HOB_FIRMWARE_VOLUME2

struct	EFI_HOB_FIRMWARE_VOLUME3

struct	EFI_HOB_CPU

struct	EFI_HOB_MEMORY_POOL

struct	EFI_HOB_UEFI_CAPSULE

union	EFI_PEI_HOB_POINTERS

Macros
#define	EFI_HOB_TYPE_HANDOFF 0x0001

#define	EFI_HOB_TYPE_MEMORY_ALLOCATION 0x0002

#define	EFI_HOB_TYPE_RESOURCE_DESCRIPTOR 0x0003

#define	EFI_HOB_TYPE_GUID_EXTENSION 0x0004

#define	EFI_HOB_TYPE_FV 0x0005

#define	EFI_HOB_TYPE_CPU 0x0006

#define	EFI_HOB_TYPE_MEMORY_POOL 0x0007

#define	EFI_HOB_TYPE_FV2 0x0009

#define	EFI_HOB_TYPE_LOAD_PEIM_UNUSED 0x000A

#define	EFI_HOB_TYPE_UEFI_CAPSULE 0x000B

#define	EFI_HOB_TYPE_FV3 0x000C

#define	EFI_HOB_TYPE_UNUSED 0xFFFE

#define	EFI_HOB_TYPE_END_OF_HOB_LIST 0xFFFF

#define	EFI_HOB_HANDOFF_TABLE_VERSION 0x0009

#define	EFI_RESOURCE_SYSTEM_MEMORY 0x00000000

#define	EFI_RESOURCE_MEMORY_MAPPED_IO 0x00000001

#define	EFI_RESOURCE_IO 0x00000002

#define	EFI_RESOURCE_FIRMWARE_DEVICE 0x00000003

#define	EFI_RESOURCE_MEMORY_MAPPED_IO_PORT 0x00000004

#define	EFI_RESOURCE_MEMORY_RESERVED 0x00000005

#define	EFI_RESOURCE_IO_RESERVED 0x00000006

#define	EFI_RESOURCE_MAX_MEMORY_TYPE 0x00000007

#define	EFI_RESOURCE_ATTRIBUTE_PRESENT 0x00000001

#define	EFI_RESOURCE_ATTRIBUTE_INITIALIZED 0x00000002

#define	EFI_RESOURCE_ATTRIBUTE_TESTED 0x00000004

#define	EFI_RESOURCE_ATTRIBUTE_READ_PROTECTED 0x00000080

#define	EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTED 0x00000100

#define	EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTED 0x00000200

#define	EFI_RESOURCE_ATTRIBUTE_PERSISTENT 0x00800000

#define	EFI_RESOURCE_ATTRIBUTE_SINGLE_BIT_ECC 0x00000008

#define	EFI_RESOURCE_ATTRIBUTE_MULTIPLE_BIT_ECC 0x00000010

#define	EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_1 0x00000020

#define	EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_2 0x00000040

#define	EFI_RESOURCE_ATTRIBUTE_UNCACHEABLE 0x00000400

#define	EFI_RESOURCE_ATTRIBUTE_WRITE_COMBINEABLE 0x00000800

#define	EFI_RESOURCE_ATTRIBUTE_WRITE_THROUGH_CACHEABLE 0x00001000

#define	EFI_RESOURCE_ATTRIBUTE_WRITE_BACK_CACHEABLE 0x00002000

#define	EFI_RESOURCE_ATTRIBUTE_16_BIT_IO 0x00004000

#define	EFI_RESOURCE_ATTRIBUTE_32_BIT_IO 0x00008000

#define	EFI_RESOURCE_ATTRIBUTE_64_BIT_IO 0x00010000

#define	EFI_RESOURCE_ATTRIBUTE_UNCACHED_EXPORTED 0x00020000

#define	EFI_RESOURCE_ATTRIBUTE_READ_PROTECTABLE 0x00100000

#define	EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTABLE 0x00200000

#define	EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTABLE 0x00400000

#define	EFI_RESOURCE_ATTRIBUTE_PERSISTABLE 0x01000000

#define	EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTED 0x00040000

#define	EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTABLE 0x00080000

#define	EFI_RESOURCE_ATTRIBUTE_MORE_RELIABLE 0x02000000

Typedefs
typedef UINT32	EFI_RESOURCE_TYPE

typedef UINT32	EFI_RESOURCE_ATTRIBUTE_TYPE

Detailed Description

HOB related definitions in PI.

Copyright (c) 2006 - 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License that accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php.

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:: PI Version 1.6

Macro Definition Documentation

◆ EFI_HOB_HANDOFF_TABLE_VERSION

#define EFI_HOB_HANDOFF_TABLE_VERSION 0x0009

Value of version in EFI_HOB_HANDOFF_INFO_TABLE.

◆ EFI_HOB_TYPE_CPU

#define EFI_HOB_TYPE_CPU 0x0006

◆ EFI_HOB_TYPE_END_OF_HOB_LIST

#define EFI_HOB_TYPE_END_OF_HOB_LIST 0xFFFF

◆ EFI_HOB_TYPE_FV

#define EFI_HOB_TYPE_FV 0x0005

◆ EFI_HOB_TYPE_FV2

#define EFI_HOB_TYPE_FV2 0x0009

◆ EFI_HOB_TYPE_FV3

#define EFI_HOB_TYPE_FV3 0x000C

◆ EFI_HOB_TYPE_GUID_EXTENSION

#define EFI_HOB_TYPE_GUID_EXTENSION 0x0004

◆ EFI_HOB_TYPE_HANDOFF

#define EFI_HOB_TYPE_HANDOFF 0x0001

◆ EFI_HOB_TYPE_LOAD_PEIM_UNUSED

#define EFI_HOB_TYPE_LOAD_PEIM_UNUSED 0x000A

◆ EFI_HOB_TYPE_MEMORY_ALLOCATION

#define EFI_HOB_TYPE_MEMORY_ALLOCATION 0x0002

◆ EFI_HOB_TYPE_MEMORY_POOL

#define EFI_HOB_TYPE_MEMORY_POOL 0x0007

◆ EFI_HOB_TYPE_RESOURCE_DESCRIPTOR

#define EFI_HOB_TYPE_RESOURCE_DESCRIPTOR 0x0003

◆ EFI_HOB_TYPE_UEFI_CAPSULE

#define EFI_HOB_TYPE_UEFI_CAPSULE 0x000B

◆ EFI_HOB_TYPE_UNUSED

#define EFI_HOB_TYPE_UNUSED 0xFFFE

◆ EFI_RESOURCE_ATTRIBUTE_16_BIT_IO

#define EFI_RESOURCE_ATTRIBUTE_16_BIT_IO 0x00004000

◆ EFI_RESOURCE_ATTRIBUTE_32_BIT_IO

#define EFI_RESOURCE_ATTRIBUTE_32_BIT_IO 0x00008000

◆ EFI_RESOURCE_ATTRIBUTE_64_BIT_IO

#define EFI_RESOURCE_ATTRIBUTE_64_BIT_IO 0x00010000

◆ EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_1

#define EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_1 0x00000020

◆ EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_2

#define EFI_RESOURCE_ATTRIBUTE_ECC_RESERVED_2 0x00000040

◆ EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTABLE

#define EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTABLE 0x00400000

◆ EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTED

#define EFI_RESOURCE_ATTRIBUTE_EXECUTION_PROTECTED 0x00000200

◆ EFI_RESOURCE_ATTRIBUTE_INITIALIZED

#define EFI_RESOURCE_ATTRIBUTE_INITIALIZED 0x00000002

◆ EFI_RESOURCE_ATTRIBUTE_MORE_RELIABLE

#define EFI_RESOURCE_ATTRIBUTE_MORE_RELIABLE 0x02000000

◆ EFI_RESOURCE_ATTRIBUTE_MULTIPLE_BIT_ECC

#define EFI_RESOURCE_ATTRIBUTE_MULTIPLE_BIT_ECC 0x00000010

◆ EFI_RESOURCE_ATTRIBUTE_PERSISTABLE

#define EFI_RESOURCE_ATTRIBUTE_PERSISTABLE 0x01000000

◆ EFI_RESOURCE_ATTRIBUTE_PERSISTENT

#define EFI_RESOURCE_ATTRIBUTE_PERSISTENT 0x00800000

◆ EFI_RESOURCE_ATTRIBUTE_PRESENT

#define EFI_RESOURCE_ATTRIBUTE_PRESENT 0x00000001

◆ EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTABLE

#define EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTABLE 0x00080000

◆ EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTED

#define EFI_RESOURCE_ATTRIBUTE_READ_ONLY_PROTECTED 0x00040000

◆ EFI_RESOURCE_ATTRIBUTE_READ_PROTECTABLE

#define EFI_RESOURCE_ATTRIBUTE_READ_PROTECTABLE 0x00100000

◆ EFI_RESOURCE_ATTRIBUTE_READ_PROTECTED

#define EFI_RESOURCE_ATTRIBUTE_READ_PROTECTED 0x00000080

◆ EFI_RESOURCE_ATTRIBUTE_SINGLE_BIT_ECC

#define EFI_RESOURCE_ATTRIBUTE_SINGLE_BIT_ECC 0x00000008

◆ EFI_RESOURCE_ATTRIBUTE_TESTED

#define EFI_RESOURCE_ATTRIBUTE_TESTED 0x00000004

◆ EFI_RESOURCE_ATTRIBUTE_UNCACHEABLE

#define EFI_RESOURCE_ATTRIBUTE_UNCACHEABLE 0x00000400

◆ EFI_RESOURCE_ATTRIBUTE_UNCACHED_EXPORTED

#define EFI_RESOURCE_ATTRIBUTE_UNCACHED_EXPORTED 0x00020000

◆ EFI_RESOURCE_ATTRIBUTE_WRITE_BACK_CACHEABLE

#define EFI_RESOURCE_ATTRIBUTE_WRITE_BACK_CACHEABLE 0x00002000

◆ EFI_RESOURCE_ATTRIBUTE_WRITE_COMBINEABLE

#define EFI_RESOURCE_ATTRIBUTE_WRITE_COMBINEABLE 0x00000800

◆ EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTABLE

#define EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTABLE 0x00200000

◆ EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTED

#define EFI_RESOURCE_ATTRIBUTE_WRITE_PROTECTED 0x00000100

◆ EFI_RESOURCE_ATTRIBUTE_WRITE_THROUGH_CACHEABLE

#define EFI_RESOURCE_ATTRIBUTE_WRITE_THROUGH_CACHEABLE 0x00001000

◆ EFI_RESOURCE_FIRMWARE_DEVICE

#define EFI_RESOURCE_FIRMWARE_DEVICE 0x00000003

◆ EFI_RESOURCE_IO

#define EFI_RESOURCE_IO 0x00000002

◆ EFI_RESOURCE_IO_RESERVED

#define EFI_RESOURCE_IO_RESERVED 0x00000006

◆ EFI_RESOURCE_MAX_MEMORY_TYPE

#define EFI_RESOURCE_MAX_MEMORY_TYPE 0x00000007

◆ EFI_RESOURCE_MEMORY_MAPPED_IO

#define EFI_RESOURCE_MEMORY_MAPPED_IO 0x00000001

◆ EFI_RESOURCE_MEMORY_MAPPED_IO_PORT

#define EFI_RESOURCE_MEMORY_MAPPED_IO_PORT 0x00000004

◆ EFI_RESOURCE_MEMORY_RESERVED

#define EFI_RESOURCE_MEMORY_RESERVED 0x00000005

◆ EFI_RESOURCE_SYSTEM_MEMORY

#define EFI_RESOURCE_SYSTEM_MEMORY 0x00000000

Typedef Documentation

◆ EFI_RESOURCE_ATTRIBUTE_TYPE

typedef UINT32 EFI_RESOURCE_ATTRIBUTE_TYPE

A type of recount attribute type.

◆ EFI_RESOURCE_TYPE

typedef UINT32 EFI_RESOURCE_TYPE

The resource type.
