dwc2.h File Reference

#include <stdint.h>

Include dependency graph for dwc2.h:

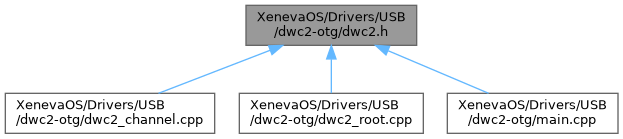

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	dwc2_usb_endpoint_t
struct	usb_setup_packet_t

Macros
#define	USB_PID_SETUP   3
#define	USB_PID_DATA   2
#define	USB_PID_DATA0   0
#define	USB_PID_DATA2   1
#define	DWC2_GET_PORT_SPEED(hport)   ((hport >> 17) & 0x3)
#define	EP_OUT   0
#define	EP_IN   1
#define	EP_BIDIR   2
#define	EP_CONTROL   0
#define	EP_ISOCHRONOUS   1
#define	EP_BULK   2
#define	EP_INTERRUPT   3

Functions
uint32_t	dwc2_read (uint64_t base)
	dwc2_read – reads a value from dwc2 register
void	dwc2_write (uint64_t base, uint32_t value)
	dwc2_write – write a value to dwc2 register
void	dwc2_control_transfer (struct dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, uint8_t bmRequestType, uint8_t b_request, uint16_t wValue, uint16_t wIndex, void *data, uint16_t wLength)
void	dwc2_interrupt_transfer (dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, void *intbuf, uint8_t ch, uint32_t odd, uint8_t pid)
void	dwc2_enumerate_root_device (struct dwc2_core_regs *regs)
void	dwc2_handle_channel_interrupt (dwc2_core_regs *regs, int ch)
	dwc2_handle_channel_interrupt – handle channel interrupts here
void *	dwc2_get_dma_address ()
	dwc2_get_dma_address – return pre allocated dma address
void *	dwc2_get_dma_address_phys ()
void	dwc2_flush_tx_fifo (struct dwc2_core_regs *regs, uint32_t nfifo)
void	dwc2_flush_rx_fifo (struct dwc2_core_regs *regs)
void	dwc2_add_to_used_dma_list (void *phys)
	dwc2_add_to_used_dma_list – there is a bug i guess within the dwc2 ip where same buffer can't be used for setup packet
void	dwc2_free_used_dma_list ()
	dwc2_free_used_dma_list – free up all used physical memories, this function must be called at the end of the class driver initialization
void	root_hub_transfer_int (dwc2_core_regs *regs, uint8_t pid)
void *	root_hub_get_interrupt_buffer ()
void	root_hub_handle_port_change (dwc2_core_regs *regs, uint8_t port)

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2025, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

DWC2_GET_PORT_SPEED

#define DWC2_GET_PORT_SPEED

(

hport

)

((hport >> 17) & 0x3)

EP_BIDIR

#define EP_BIDIR   2

EP_BULK

#define EP_BULK   2

EP_CONTROL

#define EP_CONTROL   0

EP_IN

#define EP_IN   1

EP_INTERRUPT

#define EP_INTERRUPT   3

EP_ISOCHRONOUS

#define EP_ISOCHRONOUS   1

EP_OUT

#define EP_OUT   0

USB_PID_DATA

#define USB_PID_DATA   2

USB_PID_DATA0

#define USB_PID_DATA0   0

USB_PID_DATA2

#define USB_PID_DATA2   1

USB_PID_SETUP

#define USB_PID_SETUP   3

Function Documentation

dwc2_add_to_used_dma_list()

void dwc2_add_to_used_dma_list ( void *  phys )

extern

dwc2_add_to_used_dma_list – there is a bug i guess within the dwc2 ip where same buffer can't be used for setup packet

dwc2_control_transfer()

void dwc2_control_transfer ( struct dwc2_core_regs *  regs, dwc2_usb_endpoint_t *  ep, uint8_t  bmRequestType, uint8_t  b_request, uint16_t  wValue, uint16_t  wIndex, void *  data, uint16_t  wLength  )

extern

setup the status stage

free up the channel

dwc2_enumerate_root_device()

void dwc2_enumerate_root_device ( struct dwc2_core_regs *  regs )

extern

dwc2_enumerate_root_device – enumerate the root device

Parameters

regs	– pointer to system regs

no strings for root hub, iss iss bom laaj pali no ??

next set address, and configure the hub, because devices are waiting to get powered in

PORT power up

dwc2_flush_rx_fifo()

void dwc2_flush_rx_fifo ( struct dwc2_core_regs *  regs )

extern

dwc2_flush_tx_fifo()

void dwc2_flush_tx_fifo ( struct dwc2_core_regs *  regs, uint32_t  nfifo  )

extern

dwc2_free_used_dma_list()

void dwc2_free_used_dma_list ( )

extern

dwc2_free_used_dma_list – free up all used physical memories, this function must be called at the end of the class driver initialization

dwc2_get_dma_address()

void * dwc2_get_dma_address ( )

extern

dwc2_get_dma_address – return pre allocated dma address

dwc2_get_dma_address_phys()

void * dwc2_get_dma_address_phys ( )

extern

dwc2_handle_channel_interrupt()

void dwc2_handle_channel_interrupt ( dwc2_core_regs *  regs, int  ch  )

extern

dwc2_handle_channel_interrupt – handle channel interrupts here

Parameters

regs	– Pointer to dwc2 core registers
ch	– channel numbers

W1C

dwc2_interrupt_transfer()

void dwc2_interrupt_transfer ( dwc2_core_regs *  regs, dwc2_usb_endpoint_t *  ep, void *  intbuf, uint8_t  ch, uint32_t  odd, uint8_t  pid  )

extern

dwc2_read()

uint32_t dwc2_read ( uint64_t  base )

extern

dwc2_read – reads a value from dwc2 register

Parameters

base	– memory base

dwc2_write()

void dwc2_write ( uint64_t  base, uint32_t  value  )

extern

dwc2_write – write a value to dwc2 register

Parameters

base	– memory base
value	– value to write

root_hub_get_interrupt_buffer()

void * root_hub_get_interrupt_buffer ( )

extern

root_hub_handle_port_change()

void root_hub_handle_port_change ( dwc2_core_regs *  regs, uint8_t  port  )

extern

root_hub_transfer_int()

void root_hub_transfer_int ( dwc2_core_regs *  regs, uint8_t  pid  )
