dwc2_channel.cpp File Reference

#include "dwc2_reg.h"
#include <stdint.h>
#include "dwc2.h"
#include <Hal/AA64/aa64lowlevel.h>
#include <Hal/AA64/aa64cpu.h>
#include <Mm/pmmngr.h>
#include <Drivers/uart.h>
#include "usb_desc.h"
#include "usb_hid.h"
#include <string.h>
#include <Mm/dma.h>
#include <Fs/Dev/devinput.h>
#include <timer.h>

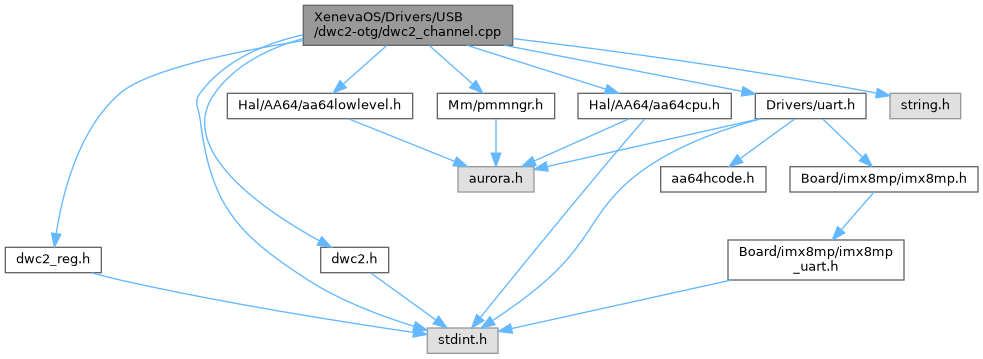

Include dependency graph for dwc2_channel.cpp:

Macros
#define	CONVERT_TO_BUS(phys)   (phys | 0xC0000000UL)
#define	HCSPLT_PRTADDR(x)   (((x) & 0x7F) << DWC2_HCSPLT_PRTADDR_OFFSET)
#define	HCSPLT_HUBADDR(x)   (((x) & 0x7F) << DWC2_HCSPLT_HUBADDR_OFFSET)
#define	HCSPLT_XACTPOS(x)   (((x) & 0x3) << DWC2_HCSPLT_XACTPOS_OFFSET)
#define	HCSPLT_COMPSPLT   (1U << DWC2_HCSPLT_COMPSPLT_OFFSET)
#define	HCSPLT_SPLTENA   (1U << DWC2_HCSPLT_SPLTENA_OFFSET)
#define	HCSPLT_XACTPOS_ALL   0x3

Functions
uint64_t	dwc2_get_base ()
void	dwc2_reset_channel (dwc2_core_regs *regs, uint8_t ch)
void	dwc2_start_channel (struct dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, uint8_t ch, uint8_t is_in, uint8_t ep_type, uint8_t pid, void *dma, uint32_t length, uint32_t pack_count, uint8_t is_odd_frame)
	dwc2_start_channel – allocates a channel
void	dwc2_channel_do_csplit (struct dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, uint8_t ch, uint8_t is_in, uint8_t ep_type, uint8_t pid, void *dma, uint32_t length, uint32_t pack_count, uint8_t is_odd_frame)
	dwc2_channel_do_csplit – complete the split transaction here
void	dwc2_start_transaction (struct dwc2_core_regs *regs, uint8_t ch, void *dma, uint32_t length, uint32_t pack_count, uint8_t pid, uint8_t is_odd_frame)
int	dwc2_wait_channel (struct dwc2_core_regs *regs, int ch)
int	dwc2_wait_channel_look_bit (struct dwc2_core_regs *regs, int ch, int bit)
bool	dwc2_control_transfer (struct dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, uint8_t bmRequestType, uint8_t b_request, uint16_t wValue, uint16_t wIndex, void *data, uint16_t wLength)
void	dwc2_handle_channel_interrupt (dwc2_core_regs *regs, int ch)
	dwc2_handle_channel_interrupt – handle channel interrupts here
void	dwc2_interrupt_transfer (dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, void *intbuf, uint8_t ch, uint32_t odd, uint8_t pid)
void	dwc2_interrupt_transfer_csplit (dwc2_core_regs *regs, dwc2_usb_endpoint_t *ep, void *intbuf, uint8_t ch, uint32_t odd, uint8_t pid)

Variables
uint8_t	port_changed

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2026, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

CONVERT_TO_BUS

#define CONVERT_TO_BUS

(

phys

)

(phys | 0xC0000000UL)

HCSPLT_COMPSPLT

#define HCSPLT_COMPSPLT   (1U << DWC2_HCSPLT_COMPSPLT_OFFSET)

HCSPLT_HUBADDR

#define HCSPLT_HUBADDR

(

x

)

(((x) & 0x7F) << DWC2_HCSPLT_HUBADDR_OFFSET)

HCSPLT_PRTADDR

#define HCSPLT_PRTADDR

(

x

)

(((x) & 0x7F) << DWC2_HCSPLT_PRTADDR_OFFSET)

HCSPLT_SPLTENA

#define HCSPLT_SPLTENA   (1U << DWC2_HCSPLT_SPLTENA_OFFSET)

HCSPLT_XACTPOS

#define HCSPLT_XACTPOS

(

x

)

(((x) & 0x3) << DWC2_HCSPLT_XACTPOS_OFFSET)

HCSPLT_XACTPOS_ALL

#define HCSPLT_XACTPOS_ALL   0x3

Function Documentation

dwc2_channel_do_csplit()

void dwc2_channel_do_csplit	(	struct dwc2_core_regs *	regs,
		dwc2_usb_endpoint_t *	ep,
		uint8_t	ch,
		uint8_t	is_in,
		uint8_t	ep_type,
		uint8_t	pid,
		void *	dma,
		uint32_t	length,
		uint32_t	pack_count,
		uint8_t	is_odd_frame
	)

dwc2_channel_do_csplit – complete the split transaction here

Parameters

regs	– pointer to dwc2 core registers
ep	– pointer to usb endpoint
ch	– channel number

clear all pending interrupts

now set transfer size

now set the dma address

dwc2_control_transfer()

bool dwc2_control_transfer	(	struct dwc2_core_regs *	regs,
		dwc2_usb_endpoint_t *	ep,
		uint8_t	bmRequestType,
		uint8_t	b_request,
		uint16_t	wValue,
		uint16_t	wIndex,
		void *	data,
		uint16_t	wLength
	)

Handle data stage

setup the status stage

free up the channel

dwc2_get_base()

uint64_t dwc2_get_base ( )

extern

dwc2_handle_channel_interrupt()

void dwc2_handle_channel_interrupt	(	dwc2_core_regs *	regs,
		int	ch
	)

dwc2_handle_channel_interrupt – handle channel interrupts here

Parameters

regs	– Pointer to dwc2 core registers
ch	– channel numbers

W1C

dwc2_interrupt_transfer()

void dwc2_interrupt_transfer	(	dwc2_core_regs *	regs,
		dwc2_usb_endpoint_t *	ep,
		void *	intbuf,
		uint8_t	ch,
		uint32_t	odd,
		uint8_t	pid
	)

dwc2_interrupt_transfer_csplit()

void dwc2_interrupt_transfer_csplit	(	dwc2_core_regs *	regs,
		dwc2_usb_endpoint_t *	ep,
		void *	intbuf,
		uint8_t	ch,
		uint32_t	odd,
		uint8_t	pid
	)

dwc2_reset_channel()

void dwc2_reset_channel	(	dwc2_core_regs *	regs,
		uint8_t	ch
	)

dwc2_start_channel()

void dwc2_start_channel	(	struct dwc2_core_regs *	regs,
		dwc2_usb_endpoint_t *	ep,
		uint8_t	ch,
		uint8_t	is_in,
		uint8_t	ep_type,
		uint8_t	pid,
		void *	dma,
		uint32_t	length,
		uint32_t	pack_count,
		uint8_t	is_odd_frame
	)

dwc2_start_channel – allocates a channel

clear all pending interrupts

now set transfer size

now set the dma address

dwc2_start_transaction()

void dwc2_start_transaction	(	struct dwc2_core_regs *	regs,
		uint8_t	ch,
		void *	dma,
		uint32_t	length,
		uint32_t	pack_count,
		uint8_t	pid,
		uint8_t	is_odd_frame
	)

now set transfer size

now enable the channel

dwc2_wait_channel()

int dwc2_wait_channel	(	struct dwc2_core_regs *	regs,
		int	ch
	)

dwc2_wait_channel_look_bit()

int dwc2_wait_channel_look_bit	(	struct dwc2_core_regs *	regs,
		int	ch,
		int	bit
	)

W1C

Variable Documentation

port_changed

uint8_t port_changed

extern
