hub.h File Reference

#include <stdint.h>
#include "../usb3.h"
#include "../xhci.h"
#include "../xhci_cmd.h"

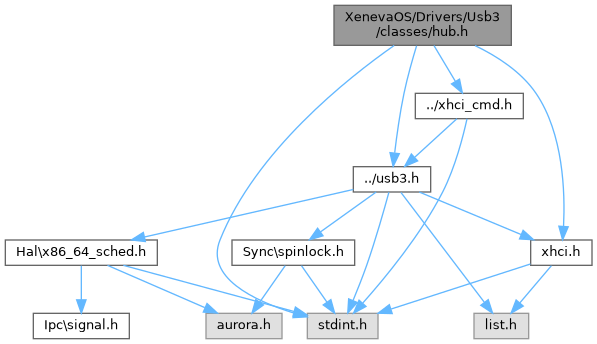

Include dependency graph for hub.h:

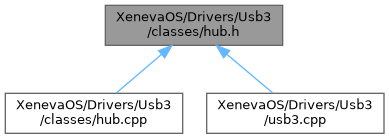

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_usb_hub_descriptor_
struct	_usb3_hub_

Macros
#define	HUB_CMD_GET_STATUS   0
#define	HUB_CMD_CLEAR_FEATURE   1
#define	HUB_CMD_SET_FEATURE   3
#define	HUB_CMD_GET_DESCRIPTOR   6
#define	HUB_CMD_SET_DESCRIPTOR   7
#define	HUB_CMD_CLEAR_TT_BUFFER   8
#define	HUB_CMD_RESET_TT   9
#define	HUB_CMD_GET_TT_STATE   10
#define	HUB_CMD_STOP_TT   11
#define	HUB_CMD_SET_HUB_DEPTH   12
#define	HUB_CMD_GET_PORT_ERR_COUNT   13
#define	HUB_FEATURE_PORT_CONNECTION   0
#define	HUB_FEATURE_PORT_ENABLE   1
#define	HUB_FEATURE_PORT_SUSPEND   2
#define	HUB_FEATURE_PORT_OVER_CURRENT   3
#define	HUB_FEATURE_PORT_RESET   4
#define	HUB_FEATURE_PORT_LINK_STATE   5
#define	HUB_FEATURE_PORT_POWER   8
#define	HUB_FEATURE_PORT_LOW_SPEED   9
#define	HUB_FEATURE_C_PORT_CONNECTION   0x10
#define	HUB_FEATURE_C_PORT_ENABLE   0x11
#define	HUB_FEATURE_C_PORT_RESET   0x14
#define	HUB_DESCRIPTOR   0x29
#define	HUB_DESCRIPTOR_3   0x2A
#define	HUB_PORT_RESET   (1<<4)

Typedefs
typedef struct _usb_hub_descriptor_	USBHubDescriptor
typedef struct _usb3_hub_	USB3HubDescriptor

Functions
void	USBHubInitialise (USBDevice *dev, XHCISlot *slot)

Macro Definition Documentation

HUB_CMD_CLEAR_FEATURE

#define HUB_CMD_CLEAR_FEATURE   1

HUB_CMD_CLEAR_TT_BUFFER

#define HUB_CMD_CLEAR_TT_BUFFER   8

HUB_CMD_GET_DESCRIPTOR

#define HUB_CMD_GET_DESCRIPTOR   6

HUB_CMD_GET_PORT_ERR_COUNT

#define HUB_CMD_GET_PORT_ERR_COUNT   13

HUB_CMD_GET_STATUS

#define HUB_CMD_GET_STATUS   0

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

HUB_CMD_GET_TT_STATE

#define HUB_CMD_GET_TT_STATE   10

HUB_CMD_RESET_TT

#define HUB_CMD_RESET_TT   9

HUB_CMD_SET_DESCRIPTOR

#define HUB_CMD_SET_DESCRIPTOR   7

HUB_CMD_SET_FEATURE

#define HUB_CMD_SET_FEATURE   3

HUB_CMD_SET_HUB_DEPTH

#define HUB_CMD_SET_HUB_DEPTH   12

HUB_CMD_STOP_TT

#define HUB_CMD_STOP_TT   11

HUB_DESCRIPTOR

#define HUB_DESCRIPTOR   0x29

HUB_DESCRIPTOR_3

#define HUB_DESCRIPTOR_3   0x2A

HUB_FEATURE_C_PORT_CONNECTION

#define HUB_FEATURE_C_PORT_CONNECTION   0x10

HUB_FEATURE_C_PORT_ENABLE

#define HUB_FEATURE_C_PORT_ENABLE   0x11

HUB_FEATURE_C_PORT_RESET

#define HUB_FEATURE_C_PORT_RESET   0x14

HUB_FEATURE_PORT_CONNECTION

#define HUB_FEATURE_PORT_CONNECTION   0

HUB_FEATURE_PORT_ENABLE

#define HUB_FEATURE_PORT_ENABLE   1

HUB_FEATURE_PORT_LINK_STATE

#define HUB_FEATURE_PORT_LINK_STATE   5

HUB_FEATURE_PORT_LOW_SPEED

#define HUB_FEATURE_PORT_LOW_SPEED   9

HUB_FEATURE_PORT_OVER_CURRENT

#define HUB_FEATURE_PORT_OVER_CURRENT   3

HUB_FEATURE_PORT_POWER

#define HUB_FEATURE_PORT_POWER   8

HUB_FEATURE_PORT_RESET

#define HUB_FEATURE_PORT_RESET   4

HUB_FEATURE_PORT_SUSPEND

#define HUB_FEATURE_PORT_SUSPEND   2

HUB_PORT_RESET

#define HUB_PORT_RESET   (1<<4)

Typedef Documentation

USB3HubDescriptor

typedef struct _usb3_hub_ USB3HubDescriptor

USBHubDescriptor

typedef struct _usb_hub_descriptor_ USBHubDescriptor

Function Documentation

USBHubInitialise()

void USBHubInitialise	(	USBDevice *	dev,
		XHCISlot *	slot
	)
