timer.h File Reference

#include <linux/container_of.h>

Include dependency graph for timer.h:

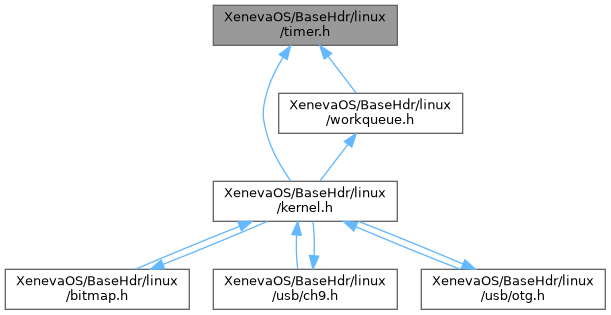

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	timer_list

Macros
#define	timer_container_of(ptr, timer_member, field)    container_of(timer_member, __typeof__(*(ptr)), field)
#define	jiffies   (dcl_jiffies_now())
#define	HZ   250 /* ticks per second � tune to your timer IRQ */
#define	msecs_to_jiffies(ms)   ((ms) * HZ / 1000)
#define	jiffies_to_msecs(j)   ((j) * 1000 / HZ)
#define	time_after(a, b)   ((long)((b) - (a)) < 0)
#define	nsecs_to_jiffies(n)   ((unsigned long)((n) / (NSEC_PER_SEC / HZ)))
#define	nsecs_to_jiffies64(n)   ((u64)((n) / (NSEC_PER_SEC / HZ)))
#define	time_before(a, b)   time_after(b, a)
#define	time_after_eq(a, b)   ((long)((a) - (b)) >= 0)
#define	timer_setup(t, fn, flags)
#define	from_timer(var, callback_timer, timer_fieldname)    container_of(callback_timer, typeof(*var), timer_fieldname)

Functions
unsigned long	dcl_jiffies_now (void)

Macro Definition Documentation

from_timer

#define from_timer	(		var,
			callback_timer,
			timer_fieldname
	)		container_of(callback_timer, typeof(*var), timer_fieldname)

HZ

#define HZ   250 /* ticks per second � tune to your timer IRQ */

jiffies

#define jiffies   (dcl_jiffies_now())

jiffies_to_msecs

#define jiffies_to_msecs

(

j

)

((j) * 1000 / HZ)

msecs_to_jiffies

#define msecs_to_jiffies

(

ms

)

((ms) * HZ / 1000)

nsecs_to_jiffies

#define nsecs_to_jiffies

(

n

)

((unsigned long)((n) / (NSEC_PER_SEC / HZ)))

nsecs_to_jiffies64

#define nsecs_to_jiffies64

(

n

)

((u64)((n) / (NSEC_PER_SEC / HZ)))

time_after

#define time_after	(		a,
			b
	)		((long)((b) - (a)) < 0)

time_after_eq

#define time_after_eq	(		a,
			b
	)		((long)((a) - (b)) >= 0)

time_before

#define time_before	(		a,
			b
	)		time_after(b, a)

timer_container_of

#define timer_container_of	(		ptr,
			timer_member,
			field
	)		container_of(timer_member, __typeof__(*(ptr)), field)

timer_setup

#define timer_setup	(		t,
			fn,
			flags
	)

Value:

    do { \
    (t)->function = (fn);              \
    (t)->pending  = 0;                 \
    (t)->data     = NULL;              \
    (t)->expires  = 0;                 \
} while (0)

Function Documentation

dcl_jiffies_now()

unsigned long dcl_jiffies_now

(

void

)
