PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0 Struct Reference

#include <PciExpress40.h>

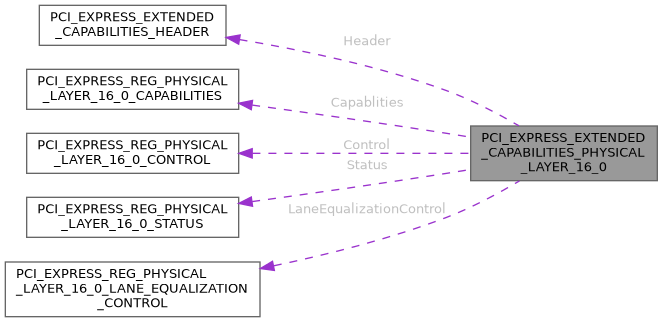

Collaboration diagram for PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0:

Public Attributes
PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER	Header
PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES	Capablities
PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL	Control
PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS	Status
UINT32	LocalDataParityMismatchStatus
UINT32	FirstRetimerDataParityMismatchStatus
UINT32	SecondRetimerDataParityMismatchStatus
UINT32	Reserved
PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL	LaneEqualizationControl [1]

Member Data Documentation

Capablities

PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::Capablities

Control

PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::Control

FirstRetimerDataParityMismatchStatus

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::FirstRetimerDataParityMismatchStatus

Header

PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::Header

LaneEqualizationControl

PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::LaneEqualizationControl[1]

LocalDataParityMismatchStatus

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::LocalDataParityMismatchStatus

Reserved

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::Reserved

SecondRetimerDataParityMismatchStatus

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::SecondRetimerDataParityMismatchStatus

Status

PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0::Status

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/IndustryStandard/PciExpress40.h
