#include <SdramSpdDdr4.h>

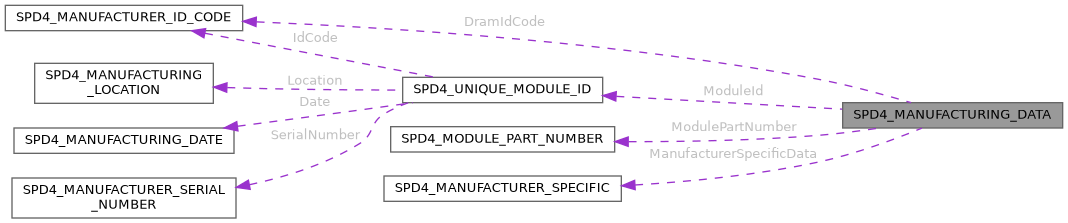

Collaboration diagram for SPD4_MANUFACTURING_DATA:
Public Attributes | |
| SPD4_UNIQUE_MODULE_ID | ModuleId |
| 320-328 Unique Module ID | |
| SPD4_MODULE_PART_NUMBER | ModulePartNumber |
| 329-348 Module Part Number | |
| SPD4_MODULE_REVISION_CODE | ModuleRevisionCode |
| 349 Module Revision Code | |
| SPD4_MANUFACTURER_ID_CODE | DramIdCode |
| 350-351 Dram Manufacturer ID Code | |
| SPD4_DRAM_STEPPING | DramStepping |
| 352 Dram Stepping | |
| SPD4_MANUFACTURER_SPECIFIC | ManufacturerSpecificData |
| 353-381 Manufacturer's Specific Data | |
| UINT8 | Reserved [2] |
| 382-383 Reserved | |
Member Data Documentation
◆ DramIdCode
| SPD4_MANUFACTURER_ID_CODE SPD4_MANUFACTURING_DATA::DramIdCode |
350-351 Dram Manufacturer ID Code
◆ DramStepping
| SPD4_DRAM_STEPPING SPD4_MANUFACTURING_DATA::DramStepping |
352 Dram Stepping
◆ ManufacturerSpecificData
| SPD4_MANUFACTURER_SPECIFIC SPD4_MANUFACTURING_DATA::ManufacturerSpecificData |
353-381 Manufacturer's Specific Data
◆ ModuleId
| SPD4_UNIQUE_MODULE_ID SPD4_MANUFACTURING_DATA::ModuleId |
320-328 Unique Module ID
◆ ModulePartNumber
| SPD4_MODULE_PART_NUMBER SPD4_MANUFACTURING_DATA::ModulePartNumber |
329-348 Module Part Number
◆ ModuleRevisionCode
| SPD4_MODULE_REVISION_CODE SPD4_MANUFACTURING_DATA::ModuleRevisionCode |
349 Module Revision Code
◆ Reserved
| UINT8 SPD4_MANUFACTURING_DATA::Reserved[2] |
382-383 Reserved
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/IndustryStandard/SdramSpdDdr4.h
