#include <SdramSpdDdr4.h>

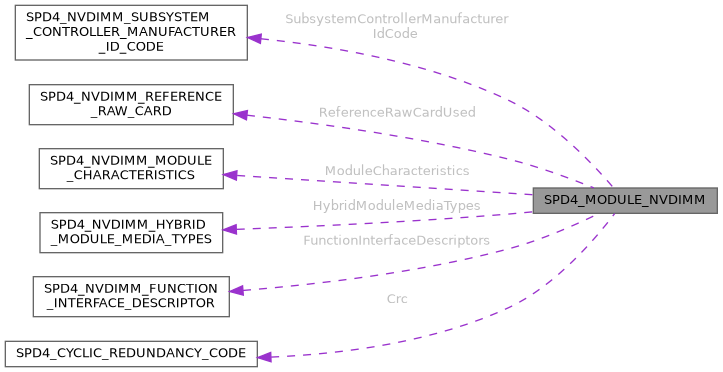

Collaboration diagram for SPD4_MODULE_NVDIMM:

[legend]

Public Attributes
UINT8	Reserved0 [191 - 128+1]
	128-191 Reserved

SPD4_NVDIMM_MODULE_PRODUCT_IDENTIFIER	ModuleProductIdentifier
	192-193 Module Product Identifier

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_MANUFACTURER_ID_CODE	SubsystemControllerManufacturerIdCode
	194-195 Subsystem Controller Manufacturer's ID Code

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_IDENTIFIER	SubsystemControllerIdentifier
	196-197 Subsystem Controller Identifier

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_REVISION_CODE	SubsystemControllerRevisionCode
	198 Subsystem Controller Revision Code

SPD4_NVDIMM_REFERENCE_RAW_CARD	ReferenceRawCardUsed
	199 Reference Raw Card Used

SPD4_NVDIMM_MODULE_CHARACTERISTICS	ModuleCharacteristics
	200 Module Characteristics

SPD4_NVDIMM_HYBRID_MODULE_MEDIA_TYPES	HybridModuleMediaTypes
	201-202 Hybrid Module Media Types

SPD4_NVDIMM_MAXIMUM_NONVOLATILE_MEMORY_INITIALIZATION_TIME	MaximumNonVolatileMemoryInitializationTime
	203 Maximum Non-Volatile Memory Initialization Time

SPD4_NVDIMM_FUNCTION_INTERFACE_DESCRIPTOR	FunctionInterfaceDescriptors [8]
	204-219 Function Interface Descriptors

UINT8	Reserved [253 - 220+1]
	220-253 Reserved

SPD4_CYCLIC_REDUNDANCY_CODE	Crc
	254-255 Cyclical Redundancy Code (CRC)

Member Data Documentation

◆ Crc

SPD4_CYCLIC_REDUNDANCY_CODE SPD4_MODULE_NVDIMM::Crc

254-255 Cyclical Redundancy Code (CRC)

◆ FunctionInterfaceDescriptors

SPD4_NVDIMM_FUNCTION_INTERFACE_DESCRIPTOR SPD4_MODULE_NVDIMM::FunctionInterfaceDescriptors[8]

204-219 Function Interface Descriptors

◆ HybridModuleMediaTypes

SPD4_NVDIMM_HYBRID_MODULE_MEDIA_TYPES SPD4_MODULE_NVDIMM::HybridModuleMediaTypes

201-202 Hybrid Module Media Types

◆ MaximumNonVolatileMemoryInitializationTime

SPD4_NVDIMM_MAXIMUM_NONVOLATILE_MEMORY_INITIALIZATION_TIME SPD4_MODULE_NVDIMM::MaximumNonVolatileMemoryInitializationTime

203 Maximum Non-Volatile Memory Initialization Time

◆ ModuleCharacteristics

SPD4_NVDIMM_MODULE_CHARACTERISTICS SPD4_MODULE_NVDIMM::ModuleCharacteristics

200 Module Characteristics

◆ ModuleProductIdentifier

SPD4_NVDIMM_MODULE_PRODUCT_IDENTIFIER SPD4_MODULE_NVDIMM::ModuleProductIdentifier

192-193 Module Product Identifier

◆ ReferenceRawCardUsed

SPD4_NVDIMM_REFERENCE_RAW_CARD SPD4_MODULE_NVDIMM::ReferenceRawCardUsed

199 Reference Raw Card Used

◆ Reserved

UINT8 SPD4_MODULE_NVDIMM::Reserved[253 - 220+1]

220-253 Reserved

◆ Reserved0

UINT8 SPD4_MODULE_NVDIMM::Reserved0[191 - 128+1]

128-191 Reserved

◆ SubsystemControllerIdentifier

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_IDENTIFIER SPD4_MODULE_NVDIMM::SubsystemControllerIdentifier

196-197 Subsystem Controller Identifier

◆ SubsystemControllerManufacturerIdCode

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_MANUFACTURER_ID_CODE SPD4_MODULE_NVDIMM::SubsystemControllerManufacturerIdCode

194-195 Subsystem Controller Manufacturer's ID Code

◆ SubsystemControllerRevisionCode

SPD4_NVDIMM_SUBSYSTEM_CONTROLLER_REVISION_CODE SPD4_MODULE_NVDIMM::SubsystemControllerRevisionCode

198 Subsystem Controller Revision Code

The documentation for this struct was generated from the following file:

XenevaOS/Boot/include/IndustryStandard/SdramSpdDdr4.h
