SPD_DDR3 Struct Reference

#include <SdramSpdDdr3.h>

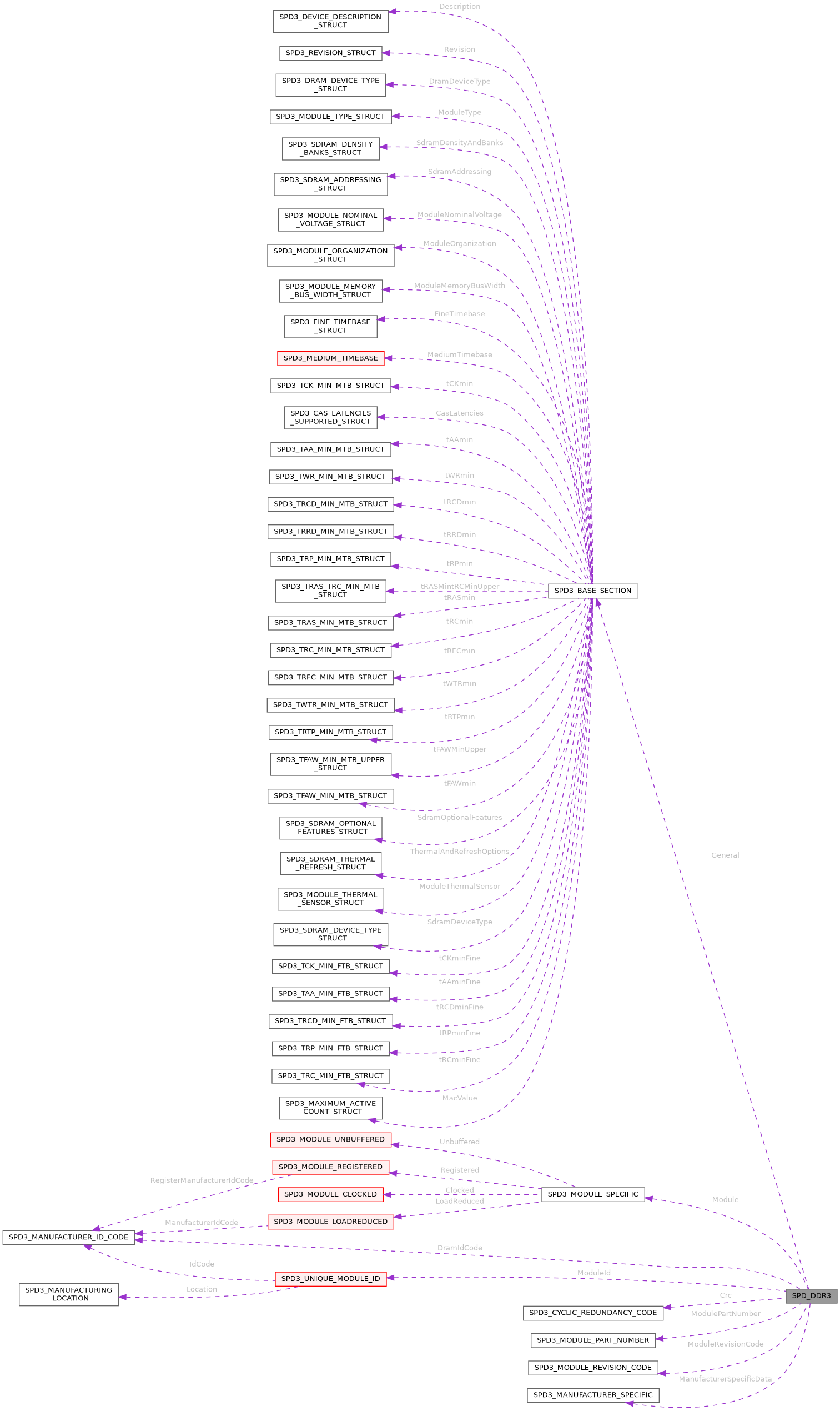

Collaboration diagram for SPD_DDR3:

Public Attributes
SPD3_BASE_SECTION	General
	0-59 General Section
SPD3_MODULE_SPECIFIC	Module
	60-116 Module-Specific Section
SPD3_UNIQUE_MODULE_ID	ModuleId
	117-125 Unique Module ID
SPD3_CYCLIC_REDUNDANCY_CODE	Crc
	126-127 Cyclical Redundancy Code (CRC)
SPD3_MODULE_PART_NUMBER	ModulePartNumber
	128-145 Module Part Number
SPD3_MODULE_REVISION_CODE	ModuleRevisionCode
	146-147 Module Revision Code
SPD3_MANUFACTURER_ID_CODE	DramIdCode
	148-149 Dram Manufacturer ID Code
SPD3_MANUFACTURER_SPECIFIC	ManufacturerSpecificData
	150-175 Manufacturer's Specific Data
UINT8	Reserved [255 - 176+1]
	176-255 Open for Customer Use

Detailed Description

DDR3 Serial Presence Detect structure

Member Data Documentation

Crc

SPD3_CYCLIC_REDUNDANCY_CODE SPD_DDR3::Crc

126-127 Cyclical Redundancy Code (CRC)

DramIdCode

SPD3_MANUFACTURER_ID_CODE SPD_DDR3::DramIdCode

148-149 Dram Manufacturer ID Code

General

SPD3_BASE_SECTION SPD_DDR3::General

0-59 General Section

ManufacturerSpecificData

SPD3_MANUFACTURER_SPECIFIC SPD_DDR3::ManufacturerSpecificData

150-175 Manufacturer's Specific Data

Module

SPD3_MODULE_SPECIFIC SPD_DDR3::Module

60-116 Module-Specific Section

ModuleId

SPD3_UNIQUE_MODULE_ID SPD_DDR3::ModuleId

117-125 Unique Module ID

ModulePartNumber

SPD3_MODULE_PART_NUMBER SPD_DDR3::ModulePartNumber

128-145 Module Part Number

ModuleRevisionCode

SPD3_MODULE_REVISION_CODE SPD_DDR3::ModuleRevisionCode

146-147 Module Revision Code

Reserved

UINT8 SPD_DDR3::Reserved[255 - 176+1]

176-255 Open for Customer Use

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/IndustryStandard/SdramSpdDdr3.h
