#include <SdramSpdLpDdr.h>

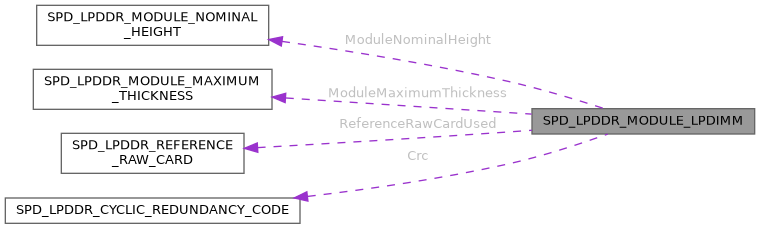

Collaboration diagram for SPD_LPDDR_MODULE_LPDIMM:
Public Attributes | |
| SPD_LPDDR_MODULE_NOMINAL_HEIGHT | ModuleNominalHeight |
| 128 Module Nominal Height | |
| SPD_LPDDR_MODULE_MAXIMUM_THICKNESS | ModuleMaximumThickness |
| 129 Module Maximum Thickness | |
| SPD_LPDDR_REFERENCE_RAW_CARD | ReferenceRawCardUsed |
| 130 Reference Raw Card Used | |
| UINT8 | Reserved [253 - 131+1] |
| 131-253 Reserved | |
| SPD_LPDDR_CYCLIC_REDUNDANCY_CODE | Crc |
| 254-255 Cyclical Redundancy Code (CRC) | |
Member Data Documentation
◆ Crc
| SPD_LPDDR_CYCLIC_REDUNDANCY_CODE SPD_LPDDR_MODULE_LPDIMM::Crc |
254-255 Cyclical Redundancy Code (CRC)
◆ ModuleMaximumThickness
| SPD_LPDDR_MODULE_MAXIMUM_THICKNESS SPD_LPDDR_MODULE_LPDIMM::ModuleMaximumThickness |
129 Module Maximum Thickness
◆ ModuleNominalHeight
| SPD_LPDDR_MODULE_NOMINAL_HEIGHT SPD_LPDDR_MODULE_LPDIMM::ModuleNominalHeight |
128 Module Nominal Height
◆ ReferenceRawCardUsed
| SPD_LPDDR_REFERENCE_RAW_CARD SPD_LPDDR_MODULE_LPDIMM::ReferenceRawCardUsed |
130 Reference Raw Card Used
◆ Reserved
| UINT8 SPD_LPDDR_MODULE_LPDIMM::Reserved[253 - 131+1] |
131-253 Reserved
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/IndustryStandard/SdramSpdLpDdr.h
