#include <aurora.h>
#include <Drivers/uart.h>
#include <Mm/vmmngr.h>
#include "dwc2_reg.h"
#include <Hal/AA64/aa64lowlevel.h>
#include <Board/RPI3bp/rpi3bp.h>
#include <Hal/AA64/gic.h>
#include "dwc2.h"
#include <Mm/pmmngr.h>
#include <list.h>
#include <string.h>

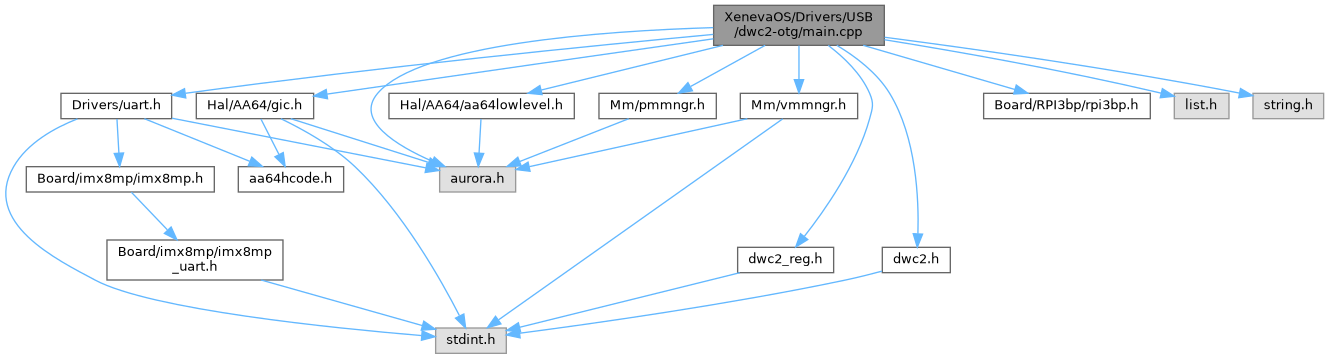

Include dependency graph for main.cpp:

Classes
struct	dwc2_dma_slot

Macros
#define	DWC2_BASE 0x3F980000

#define	DWC2_GSNPSID 0x40

#define	HPRT_DEFAULT_MASK ((1ULL << 1) \| (1ULL << 2) \| (1ULL << 3) \| (1ULL << 5))

#define	DWC2_SETUP_SLOT 1

#define	DWC2_GAHBCFG_WAIT_AXI_WRITES (1ULL << 4)

#define	DWC2_GAHBCFG_MAX_AXI_BURST__MASK (3ULL << 1)

#define	DWC2_GAHBCFG_MAX_AXI_BURST__SHIFT 1

#define	DWC2_HWCFG1_FSLS_PCLK_SEL__MASK (3ULL << 0)

#define	DWC2_HWCFG1_FSLS_PCLK_SEL_48_MHZ 1

#define	DWC2_HWCFG1_FSLS_PCLK_SEL_30_60_MHZ 0

#define	DMA_ADDRESS 0xFFFFF00000000000

Functions
AU_EXTERN AU_EXPORT int	AuDriverUnload ()

uint32_t	dwc2_read (uint64_t base)
	dwc2_read – reads a value from dwc2 register

void	dwc2_write (uint64_t base, uint32_t value)
	dwc2_write – write a value to dwc2 register

void	dwc2_wait_ahb_idle (struct dwc2_core_regs *regs)

void	dwc2_core_reset (struct dwc2_core_regs *regs)
	dwc2_core_reset – reset the otg controller

void	dwc2_config_ahb (struct dwc2_core_regs *regs)

void	dwc2_config_usb_phy (struct dwc2_core_regs *regs)

void	dwc2_config_fifos (struct dwc2_core_regs *regs)

void	dwc2_init_core (struct dwc2_core_regs *regs)

void	dwc2_enable_global_interrupt (struct dwc2_core_regs *regs)

void	dwc2_flush_tx_fifo (struct dwc2_core_regs *regs, uint32_t nfifo)

void	dwc2_flush_rx_fifo (struct dwc2_core_regs *regs)

void	dwc2_enable_host_interrupts (struct dwc2_core_regs *regs)

void	dwc2_init_host (struct dwc2_core_regs *regs)

bool	dwc2_enable_root_port (struct dwc2_core_regs *regs)

void	dwc2_interrupt_handler (int spiID)
	dwc2_interrupt_handler – interrupt handler for dwc2 OTG controller

void	dwc2_initialize (struct dwc2_core_regs *regs)

void	dwc2_dump_regs (struct dwc2_core_regs *regs)

AU_EXTERN AU_EXPORT int	AuDriverMain ()

uint64_t	dwc2_get_base ()

void *	dwc2_get_dma_address ()
	dwc2_get_dma_address – return pre allocated dma address

void *	dwc2_get_dma_address_phys ()

void	dwc2_add_to_used_dma_list (void *phys)
	dwc2_add_to_used_dma_list – there is a bug i guess within the dwc2 ip where same buffer can't be used for setup packet

void	dwc2_free_used_dma_list ()
	dwc2_free_used_dma_list – free up all used physical memories, this function must be called at the end of the class driver initialization

Variables
uint64_t	_base

bool	_root_port_ready

bool	_enable_root_port

uint64_t *	dmaAddress

uint64_t *	dmaAddressPhys

uint8_t	port_changed

Macro Definition Documentation

◆ DMA_ADDRESS

#define DMA_ADDRESS 0xFFFFF00000000000

◆ DWC2_BASE

#define DWC2_BASE 0x3F980000

BSD 2-Clause License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

◆ DWC2_GAHBCFG_MAX_AXI_BURST__MASK

#define DWC2_GAHBCFG_MAX_AXI_BURST__MASK (3ULL << 1)

◆ DWC2_GAHBCFG_MAX_AXI_BURST__SHIFT

#define DWC2_GAHBCFG_MAX_AXI_BURST__SHIFT 1

◆ DWC2_GAHBCFG_WAIT_AXI_WRITES

#define DWC2_GAHBCFG_WAIT_AXI_WRITES (1ULL << 4)

◆ DWC2_GSNPSID

#define DWC2_GSNPSID 0x40

◆ DWC2_HWCFG1_FSLS_PCLK_SEL_30_60_MHZ

#define DWC2_HWCFG1_FSLS_PCLK_SEL_30_60_MHZ 0

◆ DWC2_HWCFG1_FSLS_PCLK_SEL_48_MHZ

#define DWC2_HWCFG1_FSLS_PCLK_SEL_48_MHZ 1

◆ DWC2_HWCFG1_FSLS_PCLK_SEL__MASK

#define DWC2_HWCFG1_FSLS_PCLK_SEL__MASK (3ULL << 0)

◆ DWC2_SETUP_SLOT

#define DWC2_SETUP_SLOT 1

◆ HPRT_DEFAULT_MASK

#define HPRT_DEFAULT_MASK ((1ULL << 1) | (1ULL << 2) | (1ULL << 3) | (1ULL << 5))

Function Documentation

◆ AuDriverMain()

AU_EXTERN AU_EXPORT int AuDriverMain ( )

This driver is only for RPI for now, and before initializing the driver it is powered up by VideoCore firmware, so life is easy, but for other boards, we need to power it up from their respective power control block

◆ AuDriverUnload()

AU_EXTERN AU_EXPORT int AuDriverUnload ( )

REFERENCE USED : Linux open source project, U-Boot and USPi from Circle DWC2 regsiter definitions are from mixed sources

◆ dwc2_add_to_used_dma_list()

void dwc2_add_to_used_dma_list ( void * phys )

dwc2_add_to_used_dma_list – there is a bug i guess within the dwc2 ip where same buffer can't be used for setup packet

◆ dwc2_config_ahb()

void dwc2_config_ahb ( struct dwc2_core_regs * regs )

dwc2_config_ahb – configure dwc2 ahb

uboot dwc2 code

◆ dwc2_config_fifos()

void dwc2_config_fifos ( struct dwc2_core_regs * regs )

◆ dwc2_config_usb_phy()

void dwc2_config_usb_phy ( struct dwc2_core_regs * regs )

◆ dwc2_core_reset()

void dwc2_core_reset ( struct dwc2_core_regs * regs )

dwc2_core_reset – reset the otg controller

Parameters

regs	– pointer to system registers

◆ dwc2_dump_regs()

void dwc2_dump_regs ( struct dwc2_core_regs * regs )

◆ dwc2_enable_global_interrupt()

void dwc2_enable_global_interrupt ( struct dwc2_core_regs * regs )

◆ dwc2_enable_host_interrupts()

void dwc2_enable_host_interrupts ( struct dwc2_core_regs * regs )

◆ dwc2_enable_root_port()

bool dwc2_enable_root_port ( struct dwc2_core_regs * regs )

◆ dwc2_flush_rx_fifo()

void dwc2_flush_rx_fifo ( struct dwc2_core_regs * regs )

◆ dwc2_flush_tx_fifo()

void dwc2_flush_tx_fifo	(	struct dwc2_core_regs *	regs,
		uint32_t	nfifo
	)

◆ dwc2_free_used_dma_list()

void dwc2_free_used_dma_list ( )

dwc2_free_used_dma_list – free up all used physical memories, this function must be called at the end of the class driver initialization

◆ dwc2_get_base()

uint64_t dwc2_get_base ( )

◆ dwc2_get_dma_address()

void * dwc2_get_dma_address ( )

dwc2_get_dma_address – return pre allocated dma address

◆ dwc2_get_dma_address_phys()

void * dwc2_get_dma_address_phys ( )

◆ dwc2_init_core()

void dwc2_init_core ( struct dwc2_core_regs * regs )

◆ dwc2_init_host()

void dwc2_init_host ( struct dwc2_core_regs * regs )

restart the phy clock

◆ dwc2_initialize()

void dwc2_initialize ( struct dwc2_core_regs * regs )

data memory barrier

vendor id check

power on usb hcd via mailbox

disable all global interrupt in gahbcfg

connect irq handler

core init

global irq init

initialize the host

root port enumeration

◆ dwc2_interrupt_handler()

void dwc2_interrupt_handler ( int spiID )

dwc2_interrupt_handler – interrupt handler for dwc2 OTG controller

Parameters

spiID – system passed interrupt id

PORT interrupt

handle host channel interrupts here

◆ dwc2_read()

uint32_t dwc2_read ( uint64_t base )

dwc2_read – reads a value from dwc2 register

Parameters

base	– memory base

◆ dwc2_wait_ahb_idle()

void dwc2_wait_ahb_idle ( struct dwc2_core_regs * regs )

◆ dwc2_write()

void dwc2_write	(	uint64_t	base,
		uint32_t	value
	)

dwc2_write – write a value to dwc2 register

Parameters

base	– memory base
value	– value to write

Variable Documentation

◆ _base

uint64_t _base

◆ _enable_root_port

bool _enable_root_port

◆ _root_port_ready

bool _root_port_ready

◆ dmaAddress

uint64_t* dmaAddress

◆ dmaAddressPhys

uint64_t* dmaAddressPhys

◆ port_changed

uint8_t port_changed
