main.cpp File Reference

#include <aurora.h>
#include "imx8mp_lcdif_reg.h"
#include <Hal/AA64/aa64lowlevel.h>
#include <Drivers/uart.h>
#include <Mm/vmmngr.h>
#include <Mm/pmmngr.h>

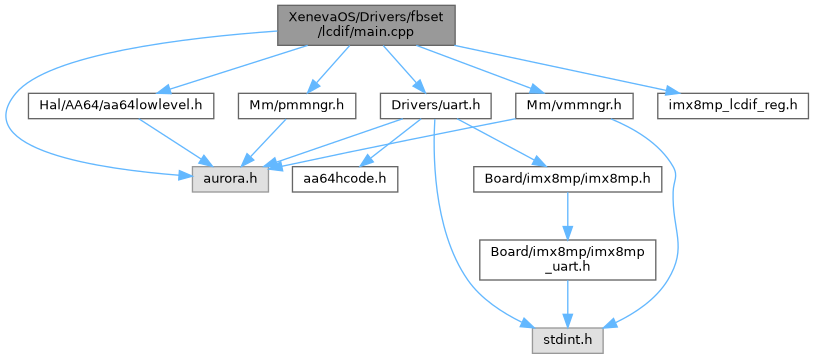

Include dependency graph for main.cpp:

Macros
#define	H_ACTIVE   1920
#define	V_ACTIVE   1080
#define	H_FRONT   88
#define	H_SYNC   44
#define	H_BACK   148
#define	V_FRONT   4
#define	V_SYNC   5
#define	V_BACK   36

Functions
void	lcdif_write (uint64_t base, uint32_t reg, uint32_t value)
uint32_t	lcdif_read (uint64_t base, uint32_t reg)
AU_EXTERN AU_EXPORT int	AuDriverUnload ()
void	lcdif_wait ()
void	lcdif_setmode ()
AU_EXTERN AU_EXPORT int	AuDriverMain ()

Macro Definition Documentation

H_ACTIVE

#define H_ACTIVE   1920

H_BACK

#define H_BACK   148

H_FRONT

#define H_FRONT   88

H_SYNC

#define H_SYNC   44

V_ACTIVE

#define V_ACTIVE   1080

V_BACK

#define V_BACK   36

V_FRONT

#define V_FRONT   4

V_SYNC

#define V_SYNC   5

Function Documentation

AuDriverMain()

AU_EXTERN AU_EXPORT int AuDriverMain

(

)

AuDriverUnload()

AU_EXTERN AU_EXPORT int AuDriverUnload

(

)

lcdif_read()

uint32_t lcdif_read	(	uint64_t	base,
		uint32_t	reg
	)

lcdif_setmode()

void lcdif_setmode

(

)

display size setup

horizontal timing

vertical timing

sync pulse widths

pixel format: ARGB8888

enable display + layer

trigger shadow load

lcdif_wait()

void lcdif_wait

(

)

lcdif_write()

void lcdif_write	(	uint64_t	base,
		uint32_t	reg,
		uint32_t	value
	)
