#include <IndustryStandard/PciExpress31.h>

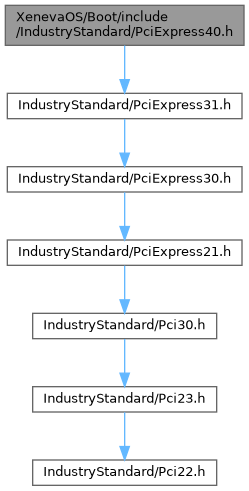

Include dependency graph for PciExpress40.h:

Classes
union	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES

union	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL

union	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS

union	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL

struct	PCI_EXPRESS_EXTENDED_CAPABILITIES_PHYSICAL_LAYER_16_0

Macros

#define	PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_ID 0x0026

#define	PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_VER1 0x1

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES_OFFSET 0x04

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL_OFFSET 0x08

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS_OFFSET 0x0C

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LOCAL_DATA_PARITY_STATUS_OFFSET 0x10

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_FIRST_RETIMER_DATA_PARITY_STATUS_OFFSET 0x14

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_SECOND_RETIMER_DATA_PARITY_STATUS_OFFSET 0x18

#define	PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL_OFFSET 0x20

Detailed Description

Support for the PCI Express 4.0 standard.

This header file may not define all structures. Please extend as required.

Copyright (c) 2018, American Megatrends, Inc. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_ID

#define PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_ID 0x0026

The Physical Layer PCI Express Extended Capability definitions.

Based on section 7.7.5 of PCI Express Base Specification 4.0.

◆ PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_VER1

#define PCI_EXPRESS_EXTENDED_CAPABILITY_PHYSICAL_LAYER_16_0_VER1 0x1

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CAPABILITIES_OFFSET 0x04

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_CONTROL_OFFSET 0x08

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_FIRST_RETIMER_DATA_PARITY_STATUS_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_FIRST_RETIMER_DATA_PARITY_STATUS_OFFSET 0x14

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LANE_EQUALIZATION_CONTROL_OFFSET 0x20

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LOCAL_DATA_PARITY_STATUS_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_LOCAL_DATA_PARITY_STATUS_OFFSET 0x10

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_SECOND_RETIMER_DATA_PARITY_STATUS_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_SECOND_RETIMER_DATA_PARITY_STATUS_OFFSET 0x18

◆ PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS_OFFSET

#define PCI_EXPRESS_REG_PHYSICAL_LAYER_16_0_STATUS_OFFSET 0x0C
