#include <PciExpress30.h>

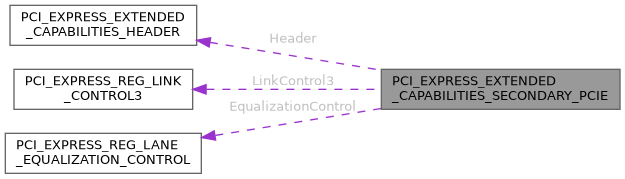

Collaboration diagram for PCI_EXPRESS_EXTENDED_CAPABILITIES_SECONDARY_PCIE:
Public Attributes | |
| PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER | Header |
| PCI_EXPRESS_REG_LINK_CONTROL3 | LinkControl3 |
| UINT32 | LaneErrorStatus |
| PCI_EXPRESS_REG_LANE_EQUALIZATION_CONTROL | EqualizationControl [2] |
Member Data Documentation
◆ EqualizationControl
| PCI_EXPRESS_REG_LANE_EQUALIZATION_CONTROL PCI_EXPRESS_EXTENDED_CAPABILITIES_SECONDARY_PCIE::EqualizationControl[2] |
◆ Header
| PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER PCI_EXPRESS_EXTENDED_CAPABILITIES_SECONDARY_PCIE::Header |
◆ LaneErrorStatus
| UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_SECONDARY_PCIE::LaneErrorStatus |
◆ LinkControl3
| PCI_EXPRESS_REG_LINK_CONTROL3 PCI_EXPRESS_EXTENDED_CAPABILITIES_SECONDARY_PCIE::LinkControl3 |
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/IndustryStandard/PciExpress30.h
